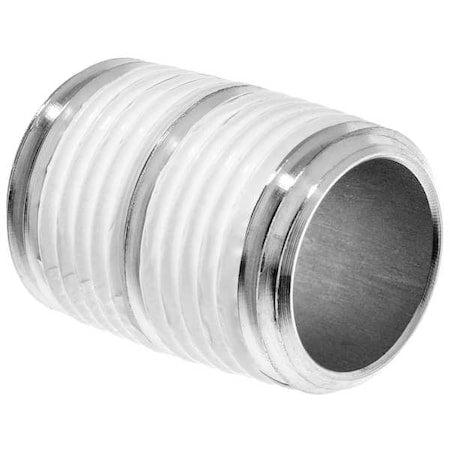

ZUSA-PF-1346 - 1 in Schedule 40 Stainless Steel Pipe Nipple, 304 SS, 1-1/2 in Length
ZUSA-PF-1346 - 1 in Schedule 40 Stainless Steel Pipe Nipple, 304 SS, 1-1/2 in Length
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ZORO SELECT - ZUSA-PF-1346 is a stainless steel pipe nipple designed to connect two female-threaded fittings, valves, or pipes. It features male NPT close threads on both ends and is fully threaded, rated for operation up to 150 psi at 72°F and with corrosion-resistant properties per listed resistance properties. This nipple is made from 304-grade stainless steel with welded construction and an electric resistance weld seam. It is compatible with Schedule 40 pipe and intended for use with air, natural gas, non-potable water, propane, and steam within the specified operating limits (see Maximum Operating Pressure and Maximum Steam Pressure). Key Features:
- - Nominal Pipe Size: 1 inch
- - Inside Diameter: 1 3/64 inches
- - Outside Diameter: 1 5/16 inches
- - Wall Thickness: 0.154 inches
- - Overall Length: 1 1/2 inches
- - Maximum Operating Pressure: 150 psi @ 72°F
- - Maximum Steam Pressure: 150 psi @ 360 Degrees F
- - Material Grade: 304 Stainless Steel
- - Thread Configuration: Fully Threaded on both ends
- - Corrosion resistance inherent to 304 stainless steel; other listed resistance properties (abrasion, chemical, diesel, oil, and UV) are not quantified in this specification
- - Conforms to Standards: ANSI/ASME B1.20.1, ASTM A312, ASTM A733
