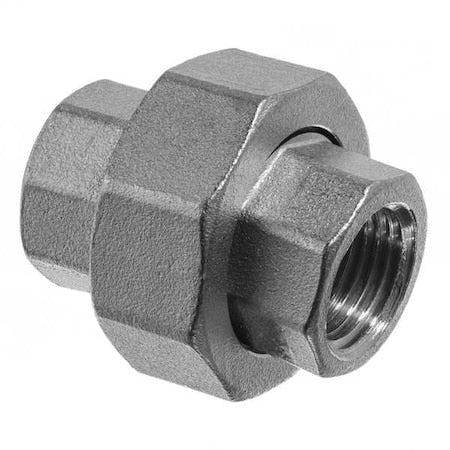

ZUSA-PF-7499 - 316 Stainless Steel Union, 1/8 in Female BSPT, Class 150

The ZORO SELECT - ZUSA-PF-7499 is a stainless steel pipe fitting designed to connect piping systems conveying air, natural gas, oil, potable water, or steam. Rated for use within ASME/ANSI Class 150 pressure‑temperature specifications, it is suitable for low- to medium-pressure applications, designed for use within the rated pressure ranges specified by applicable standards. Made from 316 stainless steel, it is compatible with specified stainless steel alloys for fitting materials, providing durability and sanitary performance based on materials used; no guarantees of performance.

Key Features:

• - Application: Intended for use with air, natural gas, oil, potable water, and steam within rated conditions.
• - Class: Rated for use within ASME/ANSI Class 150 pressure‑temperature standards.
• - Fitting Side A Gender: Female, with a nominal pipe size of 1/8 in and BSPT connection type.
• - Fitting Side A Pipe Threading: 28 TPI (threads per inch).
• - Fitting Side B Gender: Female, with a nominal pipe size of 1/8 in and BSPT connection type.
• - Fitting Side B Pipe Threading: 28 TPI.
• - Hex Size: 25 mm, facilitating installation with standard wrenches.
• - omit from description
• - omit from description
• - Material Grade: 316 stainless steel.
• - Maximum operating pressure for steam: 150 psi.
• - Overall Length: 33 mm.
• - Conforms to ISO 7-1 standards.
• - complies with low lead content standards.
