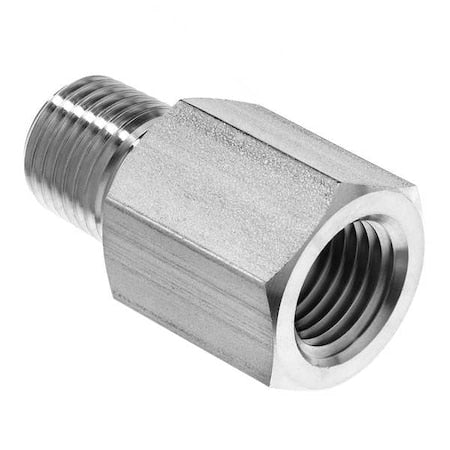

ZUSA-PF-7837 - Stainless Steel,Straight,1/2"NPTx1/2"NPT

The ZORO SELECT - ZUSA-PF-7837 is a stainless steel instrumentation pipe fitting designed as an adapter to connect small-diameter tubing and piping with differing connection types or thread standards. Constructed from 304 stainless steel, media compatibility: air, natural gas, oil, potable water, and steam are within the product's media specifications for this 304 stainless steel fitting. Joint rated for a maximum operating pressure of 4,600 psi; leakage is not guaranteed and depends on proper installation and use of appropriate seals. It complies with ANSI B31.1 standards. The fitting features a 1/2 inch nominal pipe size on both ends, with a female NPT connection on Side A and a male NPT connection on Side B.

Key Features:

• - Material: 304 stainless steel
• - Fitting shape: Adapter for connecting different connection types
• - Side A: Female NPT, 1/2 in nominal pipe size, 14 threads per inch
• - Side B: Male NPT, 1/2 in nominal pipe size, 14 threads per inch
• - Joint rated for a maximum operating pressure of 4,600 psi; leakage is not guaranteed and depends on proper installation and use of appropriate seals
• - Overall length: 1 7/8 in
• - Hex size for wrenching: 1 1/8 in across flats
• - No pre-applied thread sealant or included seals
• - Meets ANSI B31.1 standard
