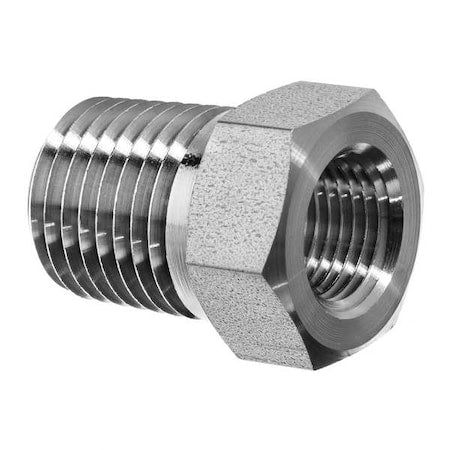

ZUSA-PF-7870 - 304 Stainless Steel Hex Bushing, Male NPT x Female NPT, 3/8 in x 1/4 in, 6,200 psi

The ZORO SELECT - ZUSA-PF-7870 is a stainless steel instrumentation pipe fitting in the shape of a hex bushing. It is designed to connect or reduce small-diameter tubing and piping used in instrumentation, sampling, and control systems, compatible with fluids within the product's rated pressure and temperature ranges for general instrumentation piping. Made from 304 stainless steel, this fitting provides pressure-rated, sealed joints rated for operation up to 6,200 psi, meeting ANSI B31.1 standards and complying with low-lead requirements for potable water systems. The fitting features a silver finish and a hexagonal shape for wrench tightening.

Key Features:

• - Material Grade: 304 stainless steel
• - Specific Fitting Shape: Hex bushing
• - Connection Side A: Male NPT thread, 3/8 in nominal pipe size, 18 threads per inch
• - Connection Side B: Female NPT thread, 1/4 in nominal pipe size, 18 threads per inch
• - Maximum Operating Pressure: 6,200 psi
• - Overall Length: 13/16 in
• - Hex Size: 3/4 in (wrenching surface across flats)
• - Color: Silver
• - Includes Pre-Applied Thread Sealant: No
• - Includes Seal: No
• - Standards: ANSI B31.1
• - Low Lead Compliance Level: Compliant
