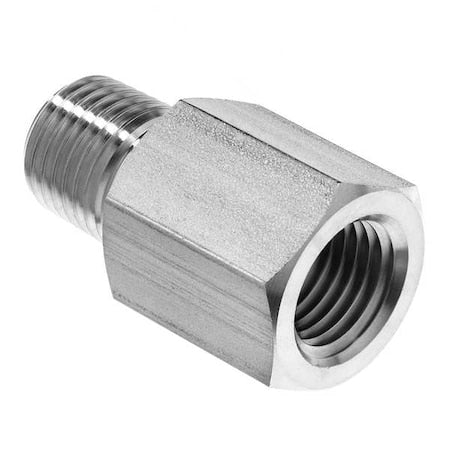

ZUSA-PF-7984 - Straight Adapter, Steel, 3/8 in NPT Female x 3/8 in BSPP Male, Galvanized

The ZORO SELECT - ZUSA-PF-7984 is a steel (zinc galvanized) instrumentation pipe fitting designed as a straight adapter to connect, branch, adapt, or terminate instrumentation tubing and low-pressure piping. It is constructed from carbon steel coated with a zinc layer that provides basic corrosion resistance, rated for use in systems handling air, hydraulic fluid, natural gas, non-potable water, oil, and steam. The galvanizing provides basic corrosion resistance; this fitting is not specified for chemical resistance or high-temperature applications. This fitting conforms to the ANSI B31.1 standard. The maximum operating pressure rating is 5,300 psi.

Key Features:

• - Material: Steel with galvanized finish for corrosion resistance.
• - Shape: Straight adapter design for versatile connection use.
• - Connection sizes: 3/8 in nominal pipe size on both sides.
• - Connection types: Side A is Female NPT with 18 threads; Side B is Male BSPP with 19 threads.
• - Hex size: 7/8 in across flats for wrench application.
• - Overall length: 1 3/8 in.
• - Thread sealant and sealing components are not included.
• - Not compliant with low-lead requirements for potable water systems.
• - Meets ANSI B31.1 piping standard.
