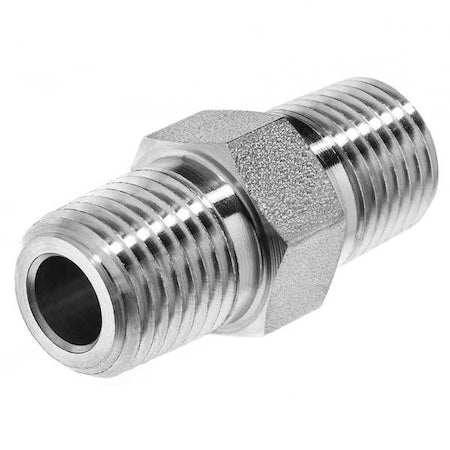

ZUSA-PF-7998 - Steel Straight Adapter, Male NPT x Male BSPP, 1/8 in, Galvanized, 7,700 psi

The ZORO SELECT - ZUSA-PF-7998 is a straight adapter steel instrumentation pipe fitting with a zinc galvanized coating for basic corrosion resistance. It is constructed from carbon steel and designed with male threaded connections on both ends, rated for use with pipe sizes of 1/8 inch nominal diameter. The fitting connects instrumentation tubing and low-pressure piping systems, and is suitable for use with compatible piping and systems for air, hydraulic fluid, natural gas, non-potable water, oil, and steam within specified pressure ratings. Its galvanized finish extends service life in industrial and outdoor settings, though it does not provide the corrosion resistance of stainless steel for aggressive or high-temperature environments.

Key Features:

• - Material: Steel with a galvanized zinc coating for corrosion protection.
• - Configuration: Straight adapter shape with both ends having male threaded connections.
• - Size and Threading: Side A is 1/8 in NPT with 27 threads per inch; Side B is 1/8 in BSPP with 28 threads per inch.
• - Rated for operation at pressures up to 7,700 psi within specified temperature ranges.
• - Overall length of 1 1/16 inches.
• - Hex size of 9/16 in for wrench application.
• - Meets ANSI B31.1 standard for piping.
• - Color: Silver finish from the galvanized coating.
• - Not compliant with low-lead requirements for potable water systems.
