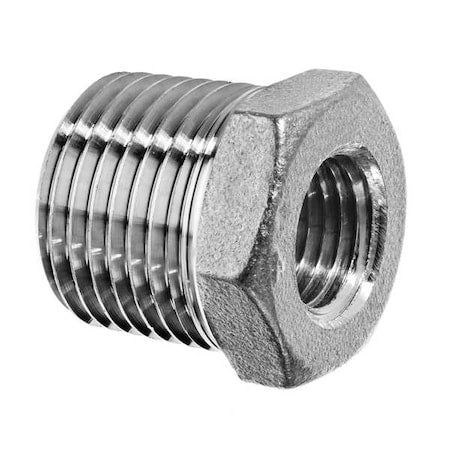

ZUSA-PF-8176 - Hex Bushing, 304 Stainless Steel, 1 in x 3/4 in, Male x Female BSPT, Class 150

The ZORO SELECT - ZUSA-PF-8176 is a stainless steel Class 150 hex bushing pipe fitting designed to connect and reduce pipe sizes in low- to medium-pressure piping systems. Material: 304 stainless steel; intended for potable water and steam piping within rated pressure. This fitting features a male BSPT connection on Side A with a 1-inch nominal pipe size and an 11 thread count, and a female BSPT connection on Side B with a 3/4-inch nominal pipe size and a 14 thread count. The fitting has a hexagonal shape with a 1-1/2 inch wrenching surface for tightening and removal. Key Features:

• - Pressure rating: 150 psi.
• - Connections: Male BSPT 1 in, 11 threads per inch on Side A; Female BSPT 3/4 in, 14 threads per inch on Side B.
• - Material: 304 stainless steel.
• - Shape: Hex bushing with a 1-1/2 inch wrenching surface.
• - Overall length: 1 1/8 in.
• - Compliant with ISO 7-1 threading standard.
• - Finish color: Silver.
• - Does not include pre-applied thread sealant or sealing components.
• - Lead-free to applicable potable water standards.
