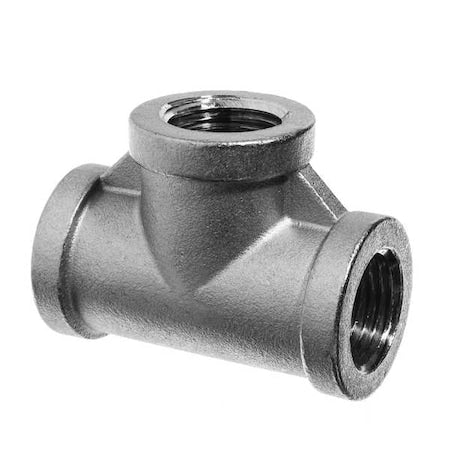

ZUSA-PF-8220 - 304 Stainless Steel Tee Fitting, 3/8 in Female BSPT, Class 150

The ZORO SELECT - ZUSA-PF-8220 is a stainless steel pipe fitting rated for operation within ASME/ANSI Class 150 standards for pressure–temperature ratings. It provides corrosion-resistant connections suitable for low- to medium-pressure systems involving applications such as water, steam, chemical, food, and HVAC lines. Made from stainless steel alloy 304, it is suitable for use within rated pressure conditions for conveying gases or fluids such as air, natural gas, oil, potable water, or steam.

Key Features:

• - Material Grade: 304 Stainless Steel, suitable for corrosion resistance and durability
• - Class: Meets ASME/ANSI Class 150 standards for pressure–temperature ratings
• - Fitting Shape: Tee, used to join three pipe runs with a T-shaped configuration
• - Connection Types: BSPT threaded connections on sides A, B, and C, with female, male, and female genders respectively
• - Pipe Sizes: Designed for 3/8 inch nominal pipe size connections on all sides
• - Threading: 19 threads per inch on all threaded connections
• - Sealant: No pre-applied thread sealant included
• - Seal: No sealing component included; connections are primarily threaded
• - Compatibility: Suitable for applications involving air, natural gas, oil, potable water, or steam
• - Certifications: Complies with ISO 7-1 standards
• - Operating Ratings: Max. steam and maximum operating pressure of 150 psi
