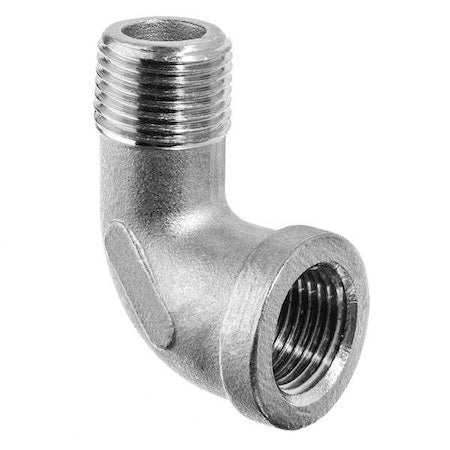

ZUSA-PF-8325 - Stainless Steel 90° Street Elbow, 3/4 in, BSPT Male x Female, Class 150

The ZORO SELECT - ZUSA-PF-8325 is a stainless steel Class 150 pipe fitting designed as a 90 degrees street elbow. It features a male threaded Side A and a female threaded Side B, both rated for 3/4 inch nominal pipe size with 14 threads per inch, using BSPT connection type. Manufactured from 316 stainless steel, this fitting is rated for operation within specified pressure–temperature parameters according to industry standards. It is suitable for conveying air, natural gas, oil, potable water, and steam in low- to medium-pressure systems, with a maximum operating pressure and maximum steam pressure of 150 psi.

Key Features:

• - Material: 316 stainless steel, providing corrosion resistance and durability.
• - Pressure rating: rated for maximum pressure of 150 psi in operating conditions
• - Connection types: rated for use with BSPT threaded connections
• - End connections: rated for 3/4 inch nominal pipe size connections
• - Specific fitting shape: rated as a 90-degree street elbow fitting
• - Standards compliance: manufactured to ISO 7-1 threading specifications
• - Color: Silver finish.
• - Does not include pre-applied thread sealant or additional sealing components.
