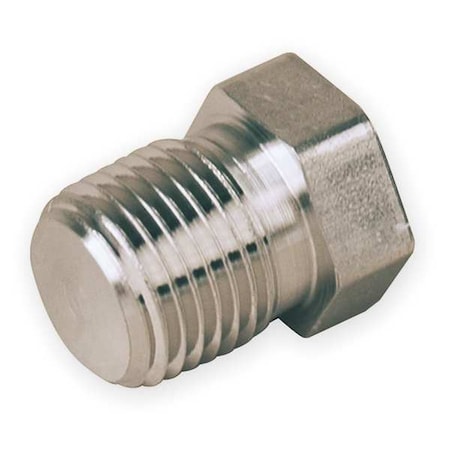

Parker 12 PH-SS - Hex Head Plug, 316 L Stainless Steel, 3/4 in MNPT, 1-1/16 in Length, 6,400 psi Max Pressure

The PARKER - 12 PH-SS is a hex head plug stainless steel pipe fitting designed to close off the end of a pipe or port. It features a 3/4-inch nominal pipe size with male national pipe taper (MNPT) threads sized 3/4 in - 14, designed for use with standard MNPT threaded connections (3/4-14) and corresponding piping systems. Constructed from 316L stainless steel and finished with a bright surface, this fitting is rated for operation up to 6,400 psi and temperature range: -425 to 1200 °F. The plug has a cored construction and a hex head measuring 1-1/16 inches across flats, allowing it to be tightened or removed using a wrench. Its overall length is approximately 1.06 inches (1 1/16 in). Key Features:

• - Material: 316L stainless steel with bright finish for corrosion and temperature resistance
• - Fitting Type: Hex head plug with 3/4-inch MNPT threads (3/4 in - 14 thread size)
• - Nominal Pipe Size: 3/4 inch
• - Rated for operation up to 6,400 psi
• - Temperature range: -425 to 1200 °F
• - Overall Length: 1.06 inches (1 1/16 in)
• - Hex Size: 1-1/16 inches for wrenching
• - Construction: Cored plug
• - Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1
