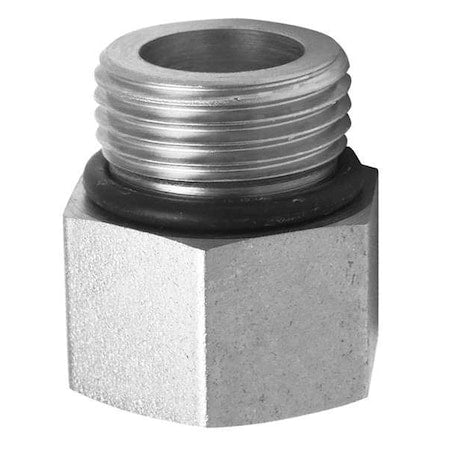

Parker 16-1 F5OG-SS - 1-5/16-12 x 1" SAE-ORB x FNPT 316 SS Pipe Adapter
Parker 16-1 F5OG-SS - 1-5/16-12 x 1" SAE-ORB x FNPT 316 SS Pipe Adapter
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The PARKER - 16-1 F5OG-SS is a stainless steel pipe adapter designed to connect two components with different connection types and thread standards. It features a male SAE-ORB connection on Side A with a nominal pipe size of 1 5/16 in and a female NPT connection on Side B with a nominal pipe size of 1 in. This adapter is rated for use with hydraulic fluids within specified parameters and is suitable for use in industrial and process applications requiring corrosion resistance. The fitting is constructed from 316 stainless steel with nitrile seal; installation should comply with standard procedures to ensure leak-tight connections.
Key Features:
- - Material: 316 Stainless Steel
- - Application: Hydraulic Fluid
- - Connection types: SAE-ORB (Male) x FNPT (Female)
- - Pipe sizes: 1-5/16"-12 (Side A) x 1" (Side B)
- - Rated for operation at pressures up to 3,600 psi within specified conditions
- - Rated for operation within the temperature range of 30°F to 250°F
- - Seal material: Nitrile
- - Standards: SAE J1926-1, SAE J514
- - Hex size: 1-5/8 in
- - Overall length: 1 7/8 in
- - Includes seal; application of thread sealant should follow standard practices
- - Number of holes: 2
- - Color: Silver
