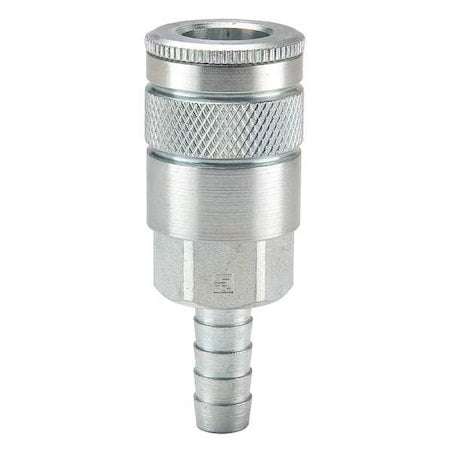

Parker 16-6B - Quick Connect,Socket,1/2" Body,1/2" Barb

The PARKER - 16-6B is a hose coupling with sleeve-lock quick-connect mechanism. For pneumatic air line connections, it provides tool-free sleeve-lock connection and disconnection of hoses using a sleeve locking mechanism, forming a pressure-rated connection with a nitrile seal. Compatible with hoses having a 1/2 in inner diameter, this coupling supports hose changes and includes a male hose barb connection with an integrated tubular valve to control airflow.

Key Features:

• - Application: Pneumatic
• - Barb Size: 1/2 in
• - Barbed Hose Tail: Yes
• - Body Size: 1/2"
• - Connection Type: Hose Barb
• - Coupling Component: Socket
• - Coupling Locking Type: Sleeve
• - Coupling Size: 1/2 in
• - Finish: Trivalent Chrome
• - Hose Fitting Gender: Male
• - Includes Valve: Yes, Tubular Type
• - Interchange Type: Tru-Flate-Automotive
• - Material: Steel
• - Max Flow Rate: 3,114.85 lpm
• - Max Outside Diameter: 1 3/16 in
• - Overall Length: 3 1/8 in
• - Seal Material: Nitrile
• - Operating temperature range: -40°F to 250°F
