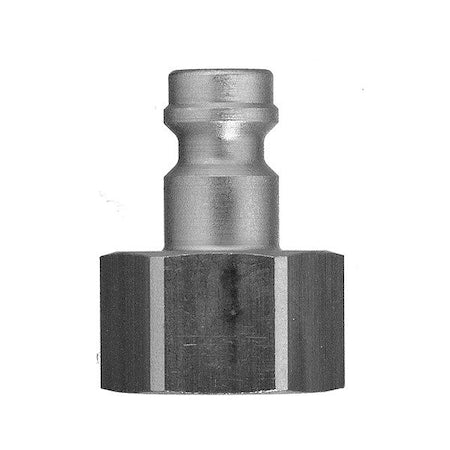

Parker 21SFIN10MXN - Quick Connect Socket,Brass,1 1/16" L

The PARKER - 21SFIN10MXN is designed for creating connections between hoses, tools, or equipment. Featuring a female 1/8 in NPTF threaded connection, this socket accepts matching plugs using a push-to-connect action with spring-loaded locking balls to hold the plug in place. “is compatible with the specified industrial interchange standards listed for this part” “is rated for use at -4°F to 212°F for pneumatic and general fluid applications”

Key Features:

• - Body size and hose fitting size: 1/8 in
• - Hose fitting gender: Female
• - Connection type: NPTF, 1/8"-27 thread size
• - Material: Brass with a nickel-plated finish
• - Includes locking balls and valve spring components
• - No valve included in the fitting
• - rated maximum working pressure: 250 psi at 70°F
• - rated maximum flow rate: 12 SCFM
• - Overall length: 1.06 in
• - Maximum outside diameter: 9/16 in
• - Seal material: Nitrile
• - Locking type: Ball mechanism
• - Interchange type: Industrial
• - Complies with standards: A-A-59439; ISO 6150-B; MIL-C-4109F
