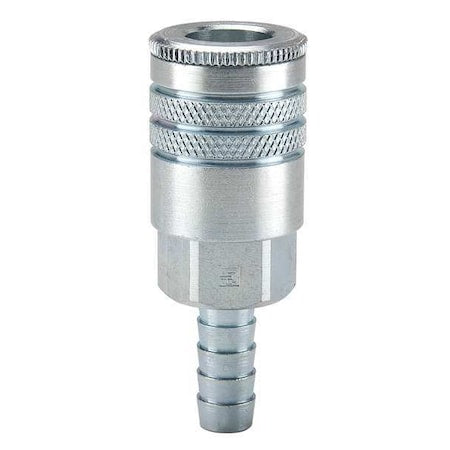

Parker 24-6B - Quick Connect,Socket,3/8" Body,1/2" Barb

The PARKER - 24-6B is a hose coupling with a sleeve locking mechanism for tool-free connection and disconnection in pneumatic applications. It is intended for use in pneumatic systems (air service) when installed with compatible hose fittings and within specified pressure/temperature limits. It provides tool-free connection and disconnection via a sleeve locking mechanism. This coupling includes a barbed hose barb connection for 1/2 in hose fitting size and compatibility with 1/2 in hose inner diameter (per specifications). It includes a tubular valve for airflow control when used as intended in the pneumatic system. The coupling is rated for a maximum working pressure of 300 psi and a maximum flow rate of 1,415.84 liters per minute. It is rated for operation within its specified temperature range of -40°F to 250°F and within its specified maximum working pressure and flow rate.

Key Features:

• - Application: Pneumatic
• - Coupling Component: Socket
• - Coupling Locking Type: Sleeve
• - Coupling Size: 3/8 in
• - Barb Size: 1/2 in
• - Barbed Connection: Yes
• - Connection Type: Hose Barb
• - Hose Fitting Gender: Male
• - Hose Fitting Size: 1/2 in
• - Includes Valve: Yes (Tubular)
• - Material: Steel
• - Finish/Coating: Trivalent Chrome
• - Max. Flow Rate: 1,415.84 lpm
• - Max. Working Pressure @ 70°F: 300 psi
• - Max. Outside Diameter: 1 1/16 in
• - Overall Length: 2 5/8 in
• - Seal Material: Nitrile
• - Temperature Range: -40°F to 250°F
• - Interchange Type: Industrial
