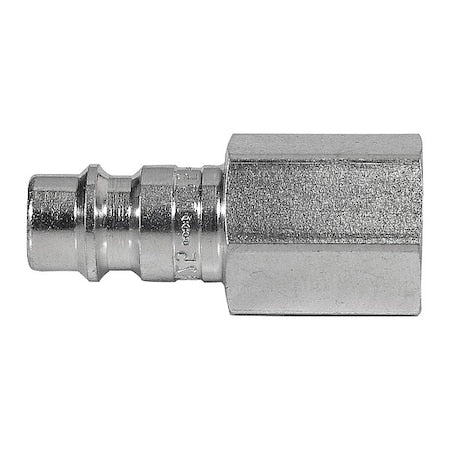

Parker 25SFIN17SXZ - Quick Connect Socket,Steel,1 1/2" L

The PARKER - 25SFIN17SXZ is a quick connect socket that provides push-to-connect mating with matching plugs. Facilitates push-to-connect mating and includes a spring-loaded release sleeve for disconnection. Constructed from steel with a zinc-plated finish, this socket is for use in pneumatic and general fluid applications (specified by compatibility with seals/temperature/pressure ranges). It has a body size of 1/4", a hose fitting size of 3/8", and uses NPTF (National Pipe Taper Fuel) threaded connections. The coupling incorporates an aerodynamic valve for controlled flow and features a Provides ball locking mechanism for mating (ball-type locking mechanism) for secure mating.
Key Features:

• - Material: Steel with zinc-plated surface coating
• - Connection Type: Female NPTF thread, 3/8"-18 thread size
• - Hose Fitting Gender: Female
• - Body Size: 1/4 inch quick connect air coupling
• - Rated for operation at up to 300 psi at 70°F (maximum working pressure)
• - Max. Flow Rate: 110 SCFM
• - Overall Length: 1.50 inches
• - Max. Outside Diameter: 15/16 inch
• - Seal Material: Nitrile
• - Temperature Range: -4°F to 212°F
• - Coupling Locking Type: Ball locking mechanism
• - Includes (4) Balls as locking components
• - Valve Type: Aerodynamic valve included
• - Interchange Type: Compatible with European High Flow standard
