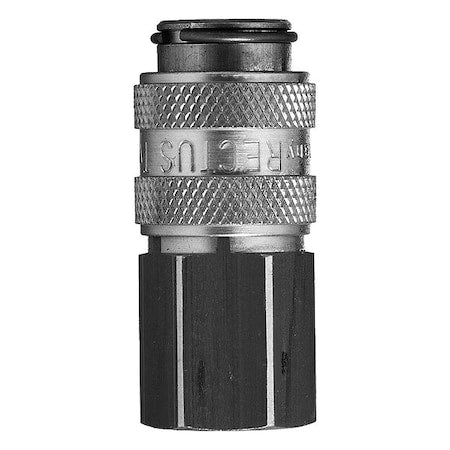

Parker 30KAIN17SPN - Quick Connect Socket,Steel,2 5/16" L

The PARKER - 30KAIN17SPN is a 3/8-inch quick connect socket designed for use with industrial interchange couplings. It functions as the female half of a quick-connect coupling system, accepting and locking the matching plug to create a connection when mated with the corresponding plug/socket in accordance with the product specifications. This socket incorporates a push-to-connect action with a spring-loaded release sleeve and an internal poppet valve, which allows connection and disconnection without tools when actuated by the push-to-connect mechanism with an integrated valve (poppet valve) for flow control during connection/disconnection. It is constructed from steel with a nickel-plated finish and features nitrile seals to support operation within a temperature range of -4°F to 212°F. The item is manufactured to meet applicable requirements of standards A-A-59439, ISO 6150-B, and MIL-C-4109F.

Key Features:

• - Coupling Component: Socket (female)
• - Connection Type: 3/8"-18 NPSF thread
• - Hose Fitting Size: 3/8 in; Body Size: 3/8 in
• - Coupling Locking Type: Ball locking mechanism
• - Includes locking balls
• - Valve Type: Poppet valve integrated for flow control
• - Max Flow Rate: 90 SCFM
• - Max Working Pressure: 300 psi @ 70°F
• - Overall Length: 2.31 in
• - Maximum Outside Diameter: 1.19 in
