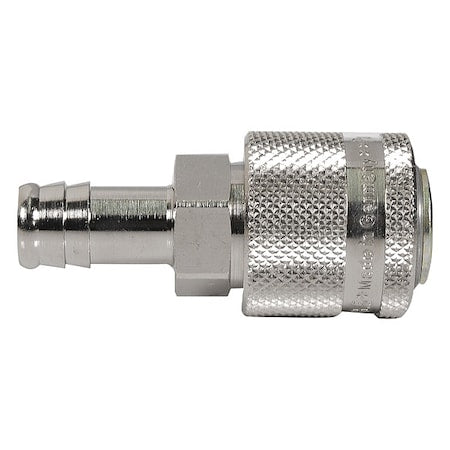

Parker 30KATF13SPN - Quick Connect Socket,Steel,2 5/8" L

The PARKER - 30KATF13SPN is a quick connect socket that connects by accepting and locking a matching plug using a push-to-connect mechanism with a spring-loaded release sleeve and an internal poppet valve. It is configured to include an internal poppet valve to help regulate fluid or air flow during connection and disconnection. Steel construction with nickel-plated finish; nitrile seal; compatible with Industrial Interchange coupling standards. The fitting incorporates a male hose barb connection sized for 1/2 in hose I.D. and 3/8 in body connection size, intended for pneumatic and general fluid applications (as specified by the applicable standards and ratings) under temperatures ranging from -4°F to 212°F.

Key Features:

• - Hose Connection: Male hose barb, 1/2 in compatible with 1/2 in hose I.D.
• - Body Size: Quick-connect air coupling body size: 3/8 in.
• - Material: Steel construction with nickel-plated finish.
• - Sealing: Nitrile seal intended for fluid sealing.
• - Pressure Rating: Maximum working pressure: 300 psi at 70°F.
• - Flow Capacity: Maximum rated flow rate: 90 scfm.
• - Valve: Integrated poppet valve for controlling fluid or air flow.
• - Coupling Lock: Ball locking mechanism for secure attachment.
• - Included Components: Locking balls and valve spring included.
• - Dimensions: Overall length of 2.63 in and maximum outside diameter of 1.19 in.
• - Compliance: Meets A-A-59439; ISO 6150-B; MIL-C-4109F standards.
• - Temperature Range: Rated for operation within -4°F to 212°F.
• - Interchange Type: Industrial Interchange compatible.
