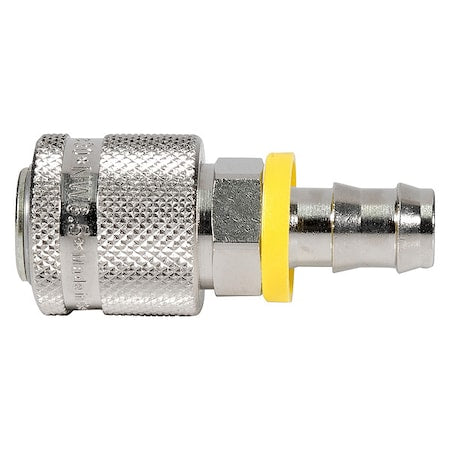

Parker 30KATP13SPN - Quick Connect Socket,Steel,2 11/16" L

The PARKER - 30KATP13SPN is a quick connect socket that forms a connection consistent with the specified design; leak rate and sealing performance depend on correct installation and operating conditions. It features a push-to-connect mechanism with a spring-loaded release sleeve and an internal poppet valve for provides push-to-connect engagement and disconnection without hand tools, as described, minimizing fluid or air loss compared to uncoupled conditions only to the extent achieved by the internal valve; actual loss depends on operating conditions and installation. is compatible with industrial interchange couplings when used with matching components and within the specified pressure, temperature, and hose dimensions. It is sized for use with hoses with an inner diameter of 1/2 in (1/2 in ID).

Key Features:

• - Material: Steel construction with a nickel-plated finish.
• - Connection Type: Hose barb with a male fitting of 1/2 in size.
• - Body Size: 3/8 in quick connect air coupling.
• - Includes locking balls and valve spring components.
• - Rated for flow up to 90 scfm under the specified conditions.
• - Maximum working pressure rating of 300 psi at 70°F (use within this rating).
• - Temperature operating range of -4°F to 212°F when used within specified pressure/flow ratings.
• - Overall length of 2.69 in and maximum outside diameter of 1.188 in.
• - Seal material is nitrile (NBR), as specified.
• - Coupling locking type: Ball.
• - Interchange type: Industrial.
• - Complies with standards A-A-59439, ISO 6150-B, MIL-C-4109F.
