Parker 4-1/8 F5OG-SS - 7/16-20 x 1/8" SAE-ORB x FNPT 316 SS Pipe Adapter
Parker 4-1/8 F5OG-SS - 7/16-20 x 1/8" SAE-ORB x FNPT 316 SS Pipe Adapter
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

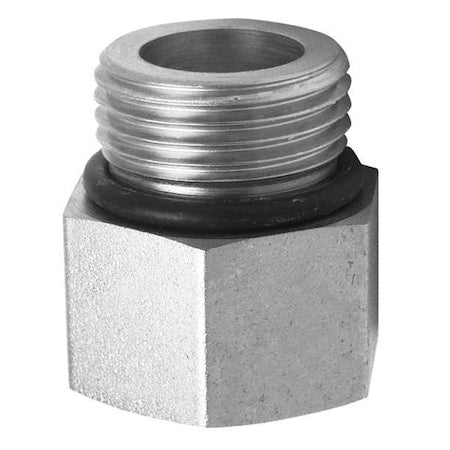

The PARKER - 4-1/8 F5OG-SS is a stainless steel pipe adapter designed for hydraulic fluid systems. It connects components with different connection types, featuring a male SAE-ORB 7/16-20 thread on one side and a female NPT 1/8" thread on the other. Constructed from 316 stainless steel, it provides corrosion resistance inherent to 316 stainless steel and is designed to transition between SAE J1926-1 SAE-ORB 7/16-20 and NPT 1/8" connections. The fitting includes a nitrile seal to provide sealing with a nitrile seal.
Key Features:
- - Material: 316 stainless steel construction.
- - Connections: Male SAE-ORB 7/16-20 x Female NPT 1/8".
- - Sealing: Includes a nitrile seal; no pre-applied thread sealant.
- - Pressure Ratings: Maximum operating pressure up to 6,000 psi; steam pressure not specified.
- - Temperature Range: Rated for service between 30 Degrees and 250 Degrees F.
- - Dimensions: Overall length of 1 inch, hex wrench size 9/16 inch, and outside diameter 9/16 inch.
- - Standards Compliance: Manufactured according to SAE J1926-1 and SAE J514 standards.
- - Number of holes: 2.
