Parker 6 FX-SS - Cross, SS, Thrd 3/8", 3/8", 3/8", 3/8"

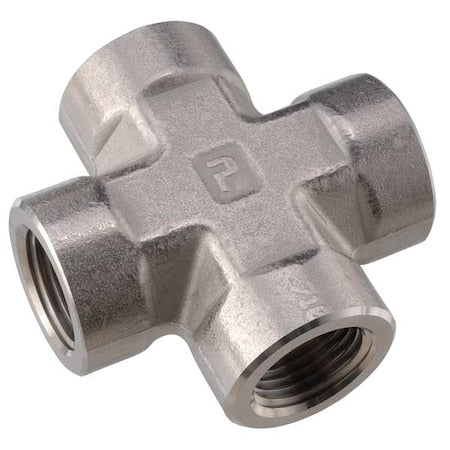

The PARKER 6 FX-SS is a stainless steel pipe fitting in the form of a cross with four openings arranged at 90° in one plane. It is designed to join or split flow among four pipe runs and is available in equal and reducing configurations. Constructed from 316 stainless steel, it is suitable for use with applications involving air, natural gas, or oil. The fitting features FNPT connections with female gender on sides A, C, and D, and a female connection on side B, all with a nominal pipe size of 3/8 inches. Its overall length is 2.12 inches, with a maximum rated pressure of 5000 psi at standard temperature conditions.

Commonly used in plumbing, HVAC, and industrial process piping, it may be selected for systems where multi-line intersections are needed, noting its limitations in high-stress applications due to junction stress concentration.

Key Features:

• - Fitting shape: Cross with four openings at 90° in one plane, used for four-way flow connections
• - Connection types: FNPT on all sides with female gender; nominal size of 3/8 inches
• - Fitting length: 2.12 inches; overall length from end to end
• - Material: Made of stainless steel grade 316
• - Pressure rating: The fitting has a maximum rated pressure of 5000 psi at standard temperature conditions
• - Standards: ANSI B31.1 available
• - Hex size: 7/8 inch for tool engagement
• - Application compatibility: Compatible with air, natural gas, and oil systems within specified parameters
• - Includes no pre-applied thread sealant or seals
