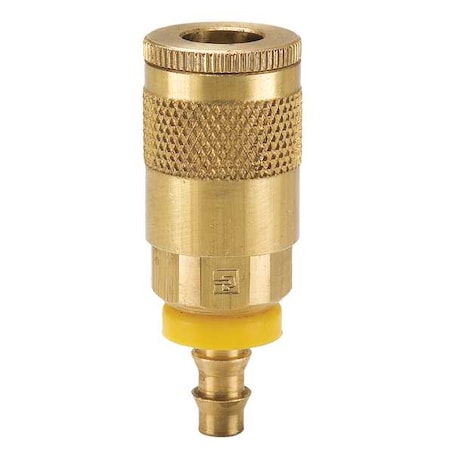

Parker B10-5BP - Quick Connect,Socket,1/4" Body,3/8" Barb

The PARKER - B10-5BP is a quick connect hose coupling designed for pneumatic applications. It is designed for manual coupling and uncoupling without requiring tools, and features a sleeve locking mechanism. The coupling includes a tubular valve intended to regulate air flow when coupling or uncoupling. It is compatible with hose inner diameters of 3/8 in and has a 1/4 in body size and coupling size. Brass construction with a nitrile seal, it is rated for use with pneumatic air lines at the specified pressure and temperature ranges and includes a nitrile seal for sealing. The fitting has a maximum working pressure: 300 psi at 70°F (see specifications for operating limits), and an overall length of 2.50 in.

Key Features:

• - Application: Pneumatic
• - Connection Type: Hose Barb
• - Hose Fitting Gender: Male
• - Barb Size: 3/8 in for hose connection
• - Coupling Locking Type: Sleeve
• - Coupling Component: Socket
• - Interchange Type: Tru-Flate-Automotive
• - Includes Valve: Yes (Tubular type)
• - Material: Brass
• - Seal Material: Nitrile
• - Max. Flow Rate: 707.92 liters per minute
• - Max. Working Pressure @ 70°F: 300 psi
• - Max. Outside Diameter: 15/16 in
• - Overall Length: 2 1/2 in (2.50 in)
• - Temperature Range: -40°F to 250°F
