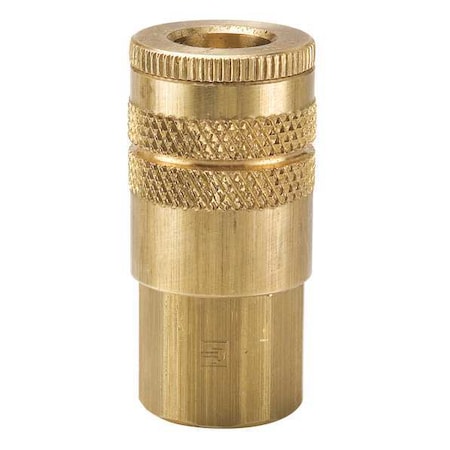

Parker B25 - Quick Connect,Socket,3/8" Body,3/8"-18

The PARKER - B25 is a quick-disconnect and reconnect design hose coupling designed for pneumatic applications. It can be connected and disconnected without tools (as applicable to the specified sleeve locking mechanism) using a sleeve locking mechanism, with nitrile seals to provide sealing at the specified pressure and temperature ranges. Constructed from brass with nitrile seals, it accommodates a 3/8 in hose fitting size with female threads and includes an integrated tubular valve to control airflow. Meets the specified industrial interchange standard and has a maximum working pressure: 300 psi (at 70°F), as well as a maximum flow rate: 1,415.84 L/min. Temperature range (rated): -40°F to 250°F.

Key Features:

• - Application: Pneumatic
• - Material: Brass
• - Hose Fitting Gender: Female
• - Hose Fitting Size: 3/8 in
• - Connection Type: (Female) NPT, 3/8"-18 thread size
• - Coupling Component: Socket
• - Coupling Locking Type: Sleeve
• - Interchange Type: Industrial
• - Includes Valve: Yes (Tubular valve type)
• - Max. Working Pressure @ 70°F: 300 psi
• - Max. Flow Rate: 1,415.84 lpm
• - Seal Material: Nitrile
• - Overall Length: 2.31 in
• - Max. Outside Diameter: 1 1/16 in
• - Temperature Range: -40°F to 250°F
• - Barbed: No
