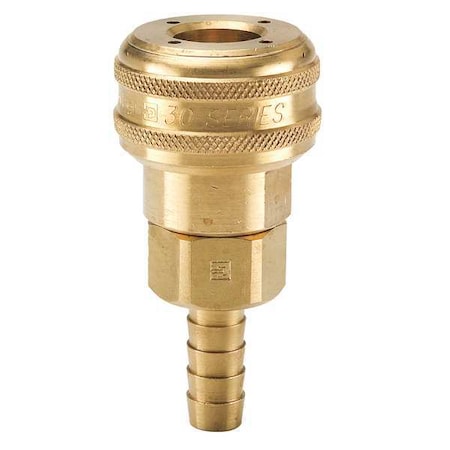

Parker B36-7B - Quick Connect,Socket,1/2" Body,3/4" Barb

The PARKER - B36-7B is a brass quick connect hose coupling designed for pneumatic applications. It features a push-to-connect locking mechanism for rapid, tool-free connection and disconnection of hoses with a nominal hose inner diameter of 3/4 in. The fitting includes an integrated tubular valve to control air flow and is rated for use within specified pneumatic operating conditions (including maximum working pressure of 300 psi at 70°F) when properly installed with compatible components. It is compatible with specified industrial interchange standards when used with compatible fittings and hoses of the stated sizes and is rated for a maximum working pressure of 300 psi at 70°F.

Key Features:

• - Application: Pneumatic
• - Material: Brass
• - Connection Type: Hose Barb with Male fitting gender
• - Barb Size: 3/4 in
• - Hose Fitting Size: 3/4 in
• - For Hose I.D.: 3/4 in
• - Coupling Size: 1/2 in with socket coupling component
• - Coupling Locking Type: Push-to-Connect
• - Includes Valve: Yes, Tubular type
• - Max. Flow Rate: 3,114.85 liters per minute
• - Max. Working Pressure @ 70°F: 300 psi
• - Temperature Range: -40°F to 250°F
• - Seal Material: Nitrile
• - Overall Length: 3.63 in
• - Max. Outside Diameter: 1.5 in
• - Interchange Type: Industrial
