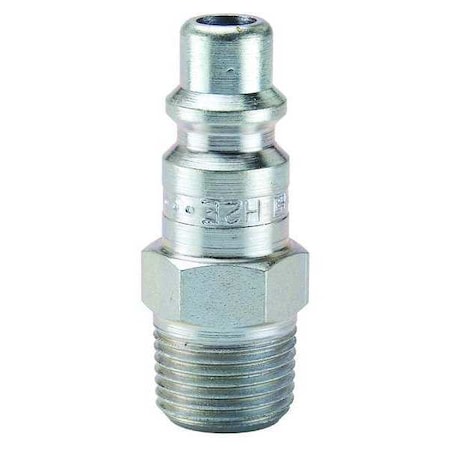

Parker H2F-G - Coupler Plug,Steel,3/4 In. Pipe,110 cfm

The PARKER - H2F-G is a quick connect hose coupling rated for pneumatic air line use and compatible fluid transfer applications. It supports tool-free connection and disconnection when used with compatible hoses and fittings. It features a male plug coupling component with a 1/2 in coupling size and a 3/4 in hose fitting size, uses a 3/4"-14 NPT male threaded connection (industrial interchange compatibility when matched to specified standard fittings). This coupling is rated for operation within -40°F to 250°F and has a rated maximum working pressure of 300 psi at 70°F. Maximum rated flow rate: 3,114.85 L/min (when operated within the stated pressure and temperature ratings).

Key Features:

• - Application: pneumatic air line use and compatible fluid transfer applications.
• - Connection Type: Male NPT thread, 3/4"-14 size.
• - Coupling Component: Plug with industrial interchange type.
• - Hose Fitting Gender: Male; Hose Fitting Size: 3/4 in; Coupling Size: 1/2 in.
• - Maximum Flow Rate: 3,114.85 lpm.
• - Maximum Working Pressure: 300 psi at 70°F.
• - Operating Temperature Range: -40°F to 250°F.
• - Overall Length: 2 3/8 in; Maximum Outside Diameter: 1 1/4 in.
• - Does not include an integrated valve and is not barbed.
