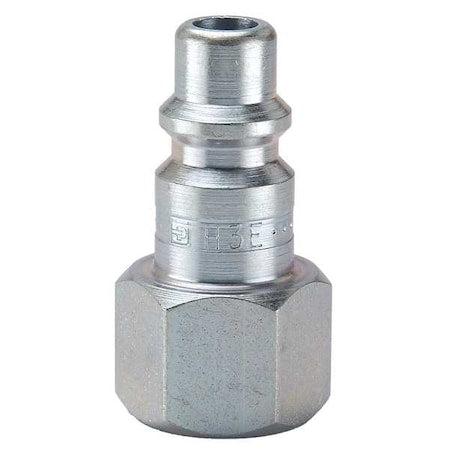

Parker H3F-G - Coupler Plug,Steel,3/4 In. Pipe,110 cfm

The PARKER - H3F-G is a pneumatic quick-connect hose coupling for rapid connection and disconnection using an industrial interchange system. It is configured for tool-free connection and disconnection in pneumatic applications using the specified industrial interchange system. Constructed from steel with a trivalent chrome finish, the fitting provides a connection suitable for pneumatic service with a maximum working pressure of 300 psi at 70°F. The coupling features a female hose fitting with a 3/4 in size and a 1/2 in body size for the air coupling connection. It does not include a valve and has a maximum rated flow rate of 3,114.85 liters per minute. The fitting operates within a temperature range of -40°F to 250°F.

Key Features:

• - Application: Pneumatic
• - Material: Steel with trivalent chrome finish
• - Connection type: NPT thread, 3/4"-14 thread size
• - Hose fitting gender: Female
• - Hose fitting size: 3/4 in
• - Coupling component: Plug
• - Coupling size: 1/2 in
• - Interchange type: Industrial
• - Max. working pressure: 300 psi @ 70°F
• - Max. flow rate: 3114.85 lpm
• - Overall length: 2.31 in
• - Max. outside diameter: 1.44 in
• - Temperature range: -40°F to 250°F
• - Barbed: No
• - Includes valve: No
