Plast-O-Matic EASMT4V12W24-120/60-PP - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 VAC, Inline Single, Viton
Plast-O-Matic EASMT4V12W24-120/60-PP - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 VAC, Inline Single, Viton
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

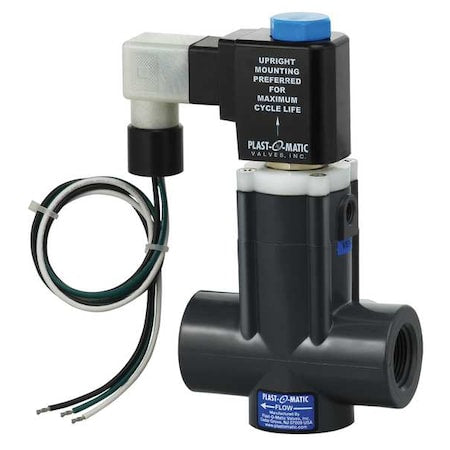

The PLAST-O-MATIC EASMT4V12W24-120/60-PP is a 2-way, 2-position solenoid valve with a normally closed, direct acting design. Fluid compatibility limited to substances compatible with polypropylene body and Viton seals; operating temperature up to 180°F. The valve is compatible with fluid temperatures up to 180°F and operates at a maximum ambient temperature of 122°F. It is intended for indoor and outdoor use with an IP65 and NEMA 4 enclosure rating, allowing for horizontal or vertical mounting orientations. The valve includes a Viton seal and is supplied with the coil and sealing components needed for installation.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed, Direct Acting
- - Body Material: Polypropylene
- - Seal Material: Viton
- - Orifice Diameter: 3/8 in
- - Nominal Pipe Size: 1/2 in NPT inlet and outlet connections
- - Maximum Flow Rate: 3.4 gpm
- - Operating Temperatures: Fluid up to 180°F; Ambient up to 122°F
- - Electrical: 120 VAC, 60 Hz, 24 W coil with wire lead connections
- - Enclosure: Without junction box, watertight coil enclosure; IP65 and NEMA 4 rated
- - Mounting Orientation: Horizontal or Vertical
- - Includes coil and seals for installation
- - Environmental Rating: Indoor and Outdoor use
- - Coefficient of Volume (Cv): 2
