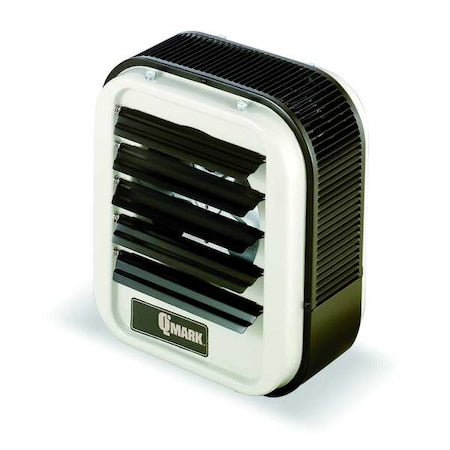

Qmark MUH0381 - Electric Wall & Ceiling Heater, 1 Phase, 208 VAC, 12 A, 16 in H x 14 in W x 7-1/2 in D
Qmark MUH0381 - Electric Wall & Ceiling Heater, 1 Phase, 208 VAC, 12 A, 16 in H x 14 in W x 7-1/2 in D
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The QMARK MUH0381 is a fan-forced electric unit heater for industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It operates on 208V AC, single-phase power and provides 3 kW of heat output with a heating capacity of 10,200 BtuH. Its pull-through airflow design moves air across the heating element for more even air distribution, and the venturi outlet supports added air throw when mounted in a vertical position.
Key Features of the QMARK MUH0381 Electric Unit Heater:
- Fan Forced Heating: Delivers 350 cfm airflow with a 27°F air temperature rise.
- Heating Element Design: Aluminum-finned, copper-clad steel sheath element is designed for lower sheath temperature and faster heat dissipation.
- Enclosed Motor: Motor is completely enclosed for use in demanding indoor work areas.
- Adjustable Louvers: Includes adjustable air outlet louvers to direct heated air where needed.
- Fan-Delay and Auto Reset: Built-in operating features for heater control.
- Control Type: Mechanical selector dial.
- Mounting Options: Designed for wall or ceiling mounting; vertical floor coverage is 9 ft and horizontal air throw is 12 ft.
- Housing Construction: Steel housing with a beige polyester powder-coated finish; cabinet construction uses 20-gauge steel on small to medium cases and 18-gauge steel on larger cabinets.
- Electrical Specifications: 208V AC, 1-phase, 60 Hz, 14.5A, with 208V AC contactor coil voltage and 3-pole switch.
- Dimensions: 16 in H x 14 in W x 7-1/2 in D.
- Field-Installable Options: Supports a range of optional control kits for added configuration flexibility.
