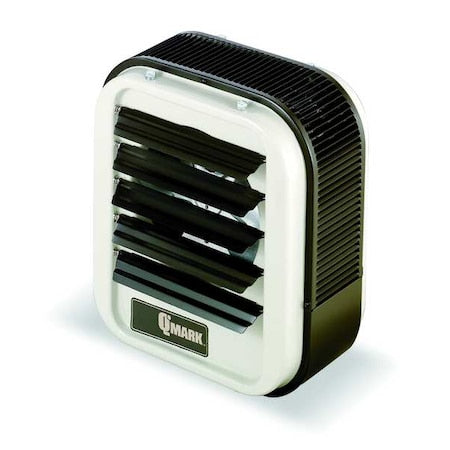

Qmark MUH072 - Fan Forced Electric Unit Heater, Wall & Ceiling, 1 or 3 Phase, 208/240 VAC, 5.6k W/7.5k W, 21-3/4 in H

The QMARK MUH072 is an electric unit heater with a fan-forced heating method for use in industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It provides 5.6/7.5 kW of output with a heating capacity of 19,100/25,600 BtuH on 208/240V AC, 1 or 3-phase power. The steel cabinet uses a polyester powder-coated beige finish, and the pull-through airflow design moves air across the heating element for more even distribution. This model can be mounted on a wall or ceiling and includes adjustable air outlet louvers for directing airflow.

Key Features of the QMARK MUH072 Electric Unit Heater:

• Fan-forced operation: Delivers 650 cfm airflow with a 37°F air temperature rise.
• Heating output: Rated at 19,100/25,600 BtuH with 5.6/7.5 kW wattage output.
• Voltage and phase: Operates on 208/240V AC at 60 Hz and supports 1 or 3-phase power.
• Air direction: Includes adjustable louvers with horizontal air throw up to 18 ft and vertical floor coverage up to 14 ft.
• Controls: Uses a mechanical selector dial and a 24V AC contactor coil voltage.
• Motor and operation features: Includes an enclosed motor, fan-delay, and auto reset functions.
• Housing construction: Steel housing with polyester powder-coated finish in beige.
• Mounting and size: Designed for wall or ceiling mounting; overall dimensions are 21-3/4 in H x 19 in W x 7-1/2 in D.
