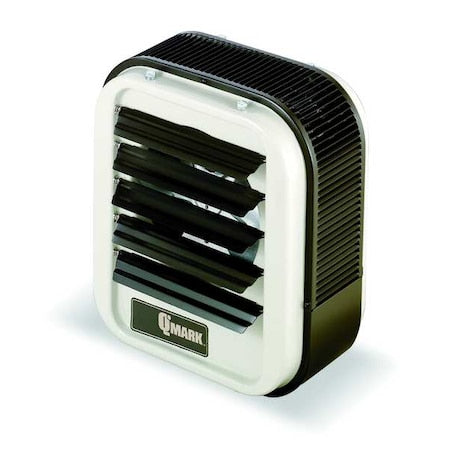

Qmark MUH074 - Electric Wall/Ceiling Heater Unit, 480 V AC, 9 A, 3-Phase, 25600 Btu H, 37 Degrees F Temp Rise
Qmark MUH074 - Electric Wall/Ceiling Heater Unit, 480 V AC, 9 A, 3-Phase, 25600 Btu H, 37 Degrees F Temp Rise
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The QMARK MUH074 is a fan-forced electric unit heater designed for industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It has a 7.5 kW output with a heating capacity of 25,600 BtuH and uses a pull-through airflow design that moves air across the heating element for more even air distribution. The steel housing has a beige polyester powder-coated finish, and the unit can be mounted on a wall or ceiling.
Key features of the QMARK MUH074 Electric Unit Heater:
- Fan-forced heating: Delivers 650 cfm airflow with a 37°F air temperature rise.
- Heating element design: Aluminum-finned, copper-clad steel sheath element supports cooler sheath temperature and faster heat dissipation.
- Air direction control: Includes adjustable air outlet louvers with an 18 ft horizontal air throw and 14 ft vertical floor coverage.
- Motor and operation: Completely enclosed fan motor with fan-delay and auto reset features.
- Controls: Uses a mechanical selector dial and a 24V AC contactor coil voltage.
- Electrical configuration: 480V AC, 3-phase, 60 Hz, 9A.
- Construction: Steel cabinet with polyester powder-coated finish.
- Mounting and size: Wall or ceiling mount design; overall dimensions are 21-3/4 in H x 19 in W x 7-1/2 in D.
- Field adaptability: Supports field-installable optional control kits; requires MMB10 and UHMT1.
