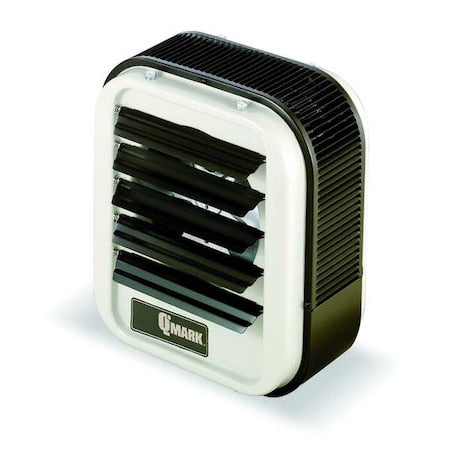

Qmark MUH102 - Fan Forced Electric Unit Heater, Wall & Ceiling, 1 or 3 Phase, 208/240 VAC, 7.5k W/10k W, 21-3/4 in H
Qmark MUH102 - Fan Forced Electric Unit Heater, Wall & Ceiling, 1 or 3 Phase, 208/240 VAC, 7.5k W/10k W, 21-3/4 in H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The QMARK MUH102 is a fan-forced electric unit heater for heating industrial and commercial spaces such as factories, warehouses, garages, stairwells, shipping docks, power stations, and mechanical rooms. It has a steel housing with a polyester powder-coated beige finish and can be mounted on a wall or ceiling. This unit operates on 208/240V AC, 1 or 3-phase power, with a heating output of 7.5/10 kW and 25,600/34,100 BtuH.
Key Features of the QMARK MUH102 Electric Unit Heater:
- Fan Forced Heating: Pull-through airflow design moves air across the heating element for more even air distribution.
- Air Flow: 650 cfm airflow supports circulation in work areas.
- Air Temperature Rise: 49°F temperature rise during operation.
- Heating Element: Aluminum-finned, copper-clad steel sheath element is designed for cooler sheath temperature and faster heat dissipation.
- Motor: Completely enclosed fan motor.
- Air Direction: Includes adjustable air outlet louvers for directing airflow where needed.
- Coverage and Throw: Horizontal air throw up to 18 ft; vertical floor coverage up to 14 ft.
- Controls: Mechanical selector dial with 24V AC contactor coil voltage.
- Fan-Delay and Auto Reset: Includes fan-delay and auto reset features.
- Electrical Details: 36A/42A, 60 Hz, 3-pole switch type.
- Construction: Steel housing; cabinet construction uses 20-gauge steel on small- to medium-case units and 18-gauge steel on larger cabinets.
- Mounting: Designed for wall and ceiling installation.
- Size: 21-3/4 in H x 19 in W x 7-1/2 in D.
