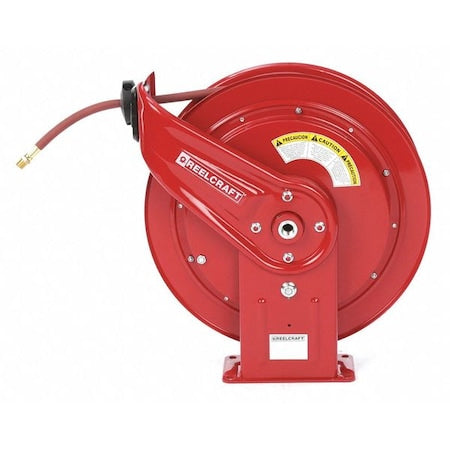

Reelcraft HD76100 OLP - Spring Return Hose Reel, 3/8 in Hose Diameter, 100 ft Length, 300 psi Max. Pressure, Red

The REELCRAFT HD76100 OLP is a spring return hose reel for air or water service, supplied with a 3/8 in. I.D. x 100 ft PVC hose. It has a stationary steel reel with a powder-coated finish and can be mounted on a bench or truck, or to a ceiling, floor, or wall. The reel uses a spring-loaded locking latch and includes a hose stop and bumper.

Key features of the REELCRAFT HD76100 OLP:

• Spring return drive: Rewinds the hose onto the reel after use.
• 100 ft hose included: Comes with a red PVC hose sized 3/8 in. I.D. for air or water service only.
• 300 psi maximum pressure: Rated for operating pressures up to 300 psi.
• 32 to 150 degrees F operating range: Suitable for use within the listed temperature limits.
• Steel construction: Carbon steel reel with all-steel frame components.
• Powder-coated finish: Helps resist corrosion on the reel exterior.
• Ball bearing design: Permanently lubricated ball bearings support smoother spool rotation.
• Adjustable guide arm: Single guide arm can be set in seven positions.
• 1/2 in. NPT connections: Reel inlet is 1/2 in. FNPT with 1/2 in. NPT male hose ends.
• Open reel design: Non-enclosed reel with single pedestal base.
• Mounting pattern: Four 1/2 in. mounting holes with 7 13/16 in. x 3 7/8 in. center-to-center spacing.
• Overall size: Measures 19 3/4 in. L x 8 1/4 in. W x 20 1/4 in. H.
