Rittal 3305510 - Enclosure AC,Wall Mount,5157 Btu H
Rittal 3305510 - Enclosure AC,Wall Mount,5157 Btu H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

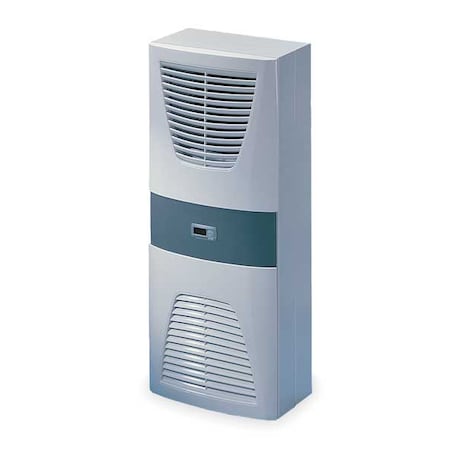

This Rittal wall-mount enclosure air conditioner is rated at 5,157 BtuH cooling capacity (6,005 BtuH max) and uses R134a refrigerant with a Comfort Controller. It runs on single-phase power at 115V, drawing 11.5/12.5 amps at 50/60 Hz, with power consumption of 1.6 kW. The unit is fully wired and ships with assembly parts, a drilling template, and a condenser with hydrophobic RiNano coating included. The housing is sheet steel with a slate gray finish, and the unit carries a NEMA 12 enclosure rating. Listed operating temperature range is 50°F to 131°F, with a cooling setpoint range of 68°F to 131°F. Specifications Cooling Capacity: 5,157 BtuH (6,005 BtuH max) Voltage: 115V | Phase: Single | Frequency: 50/60 Hz Current: 11.5/12.5 A Power Consumption: 1.6 kW NEMA Enclosure Rating: 12 Operating Temp Range: 50°F to 131°F Cooling Setpoint Range: 68°F to 131°F Refrigerant: R134a | Cooling Method: Refrigerant Housing: Sheet Steel, Slate Gray Standards: CSA, cUL, cUR, EAC, FTTA, UL, UR Dimensions: 37 in H x 16 in W x 10 in D Country of Origin: Italy
