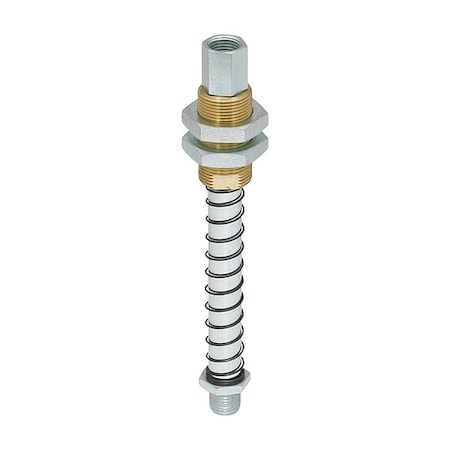

Schmalz 10.01.02.00604 - Spring plunger

The SCHMALZ - 10.01.02.00604 is a vacuum buffer intended for operation within pneumatic systems to maintain vacuum pressure within specified ranges. It features a rotating buffer element enabling swivel/rotary motion during operation. It is intended to minimize pressure fluctuations and maintain vacuum flow within specified ranges. It operates within a temperature range of 0 to 80 C and is part of the FSTE series. Key Features:

• - Rotating buffer element enabling swivel/rotary motion during operation.
• - External mounting thread size and screw size of M16 with a 1 mm pitch for secure attachment.
• - Hex sizes include 12 mm, 14 mm, and 22 mm for compatibility with various tools.
• - Pad end port is male, sized at 1/8 in, with a G type thread standard.
• - Vacuum end port is female, sized at 1/8 in.
• - Overall length measures 124 mm with an outside diameter of 16 mm.
• - Spring force: 5.34 N; spring rate: 0.1 N/mm.
• - Stroke length of 50 mm, indicating the travel distance of the buffer’s moving element.
• - Total weight: 110 g.
