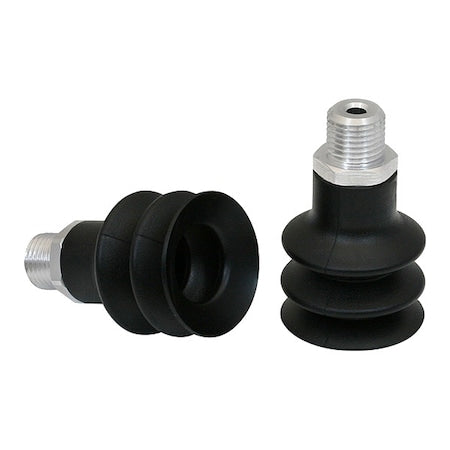

Schmalz 10.01.06.00030 - Bellow Suction Cup, 2.5
Schmalz 10.01.06.00030 - Bellow Suction Cup, 2.5
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 32 mm, Overall Height 52.5 mm, Pad Color Black, Pad Diameter 33.5 mm, Hardness 55 Shore A, Pad Height 41.5 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size 1/4 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 15 mm, Weight 17 g
