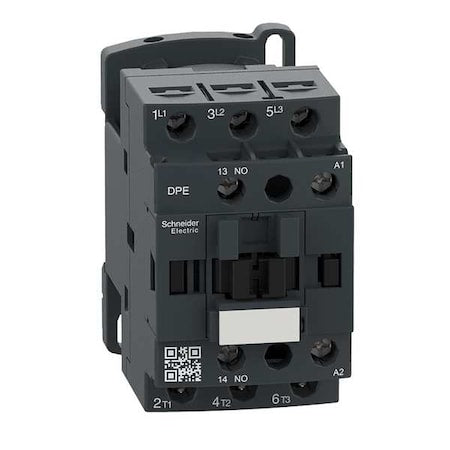

Schneider Electric DPE18G7 - IEC Magnetic Contactor, 1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric DPE18G7 - IEC Magnetic Contactor, 1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: DPE18G7
$45.99 USD
$45.99 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing switching device with a 120 V AC coil and 1 normally open auxiliary contact (1NO). It uses screw clamp terminals and is rated for use with motor control and resistive loads within specified parameters. The device is part of the TeSys family and is rated for operation at 50/60 Hz within the specified voltage range up to 690 V AC. Main contacts total 3 NO, complemented by 1 NO auxiliary contact; does not include reversing functionality.

- Coil voltage: 120 V AC

  • - Poles/Main Contacts: 3 poles; 3 NO main contacts; Auxiliary contact: 1 NO
  • - Reversing: Non-Reversing
  • - Terminals: Screw Clamp
  • - Enclosure: IP20; Enclosure ratings are as specified; no additional enclosure features implied
  • - Series: TeSys
  • - Frequency: 50/60 Hz
  • - Maximum/Insulation Voltage: 690 V AC; Rated Insulation: 600/690 V
  • - Full Load Amps: Inductive 18 A; Resistive 18 A
  • - Rated Making Capacity: Rated making capacity based on standard testing conditions
  • - Rated Breaking Capacity: Rated breaking capacity under specified test conditions
  • - Embedded Surge Suppressor: does not include an embedded surge suppressor
  • - Dimensions/Weight: Depth 3.39 in; Height 3.03 in; Width 1.77 in; Net weight 0.325 kg
  • - Mounting: compatible with mounting on DIN rail or plate according to installation instructions
  • - Mechanical/Electrical Durability: tested durability within standardized cycles under controlled conditions
  • - Operating Time/Non-Overlap: operating times are based on typical performance specifications under test conditions
  • - Hold VA: power consumption during holding is within the rated values at specified frequencies and temperatures
  • - Impulse/Signal: signal characteristics are as per manufacturer specifications for signalling circuits only
  • - Fuses: fuse ratings are provided as per product design specifications, subject to proper application guidelines
  • - Standards: CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1
  • - Special Features: Overvoltage Category III; Minimum Switching Voltage 17 V Signalling Circuit; Insulation Resistance 10 MΩ Signalling Circuit
  • - Environmental: Mercury Free; Toxic Heavy Metal Free; Pollution Degree 3
  • - Series/Model Details: TeSys
  • - Additional ratings: Max. Temperature 850°C (max.), Maximum Operating Temperature 140°F; Rated Voltage 690V AC, 300V DC; Resistance/Impedance 2.5 mΩ
  • - Reversing/Signalling: Non-Reversing; Includes Auxiliary Contacts: Yes
    • 🏢
