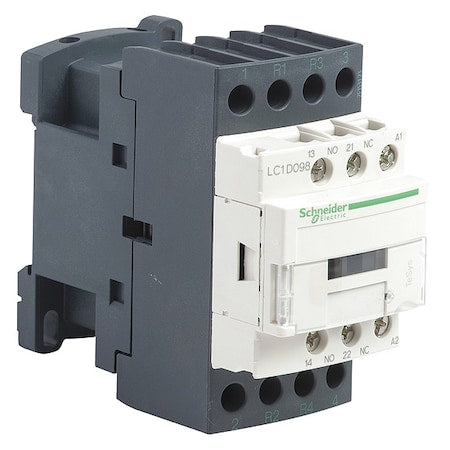

Schneider Electric LC1D098G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 4 P, Non-Reversing, Screw

Schneider Electric LC1D098G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 4 P, Non-Reversing, Screw

Brand: Schneider Electric SKU: LC1D098G7
$147.14 USD
$147.14 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a four-pole, non-reversing control device (IEC style) with a 120 V AC coil and a 1NC/1NO auxiliary contact configuration. Rated for resistive load switching within specified voltage ranges (up to 690 V AC and 250 V DC).

- Poles: 4

  • - Coil Voltage: 120 V AC
  • - Auxiliary Contacts: 4 total (1NC/1NO form)
  • - Main Contacts: 2 normally closed, 2 normally open
  • - Reversing Capability: Non-Reversing
  • - Phase: Three
  • - Contactor Style: IEC
  • - Application: Resistive Load
  • - Maximum Voltage Rating: 690 V AC, 250 V DC
  • - Rated Making Capacity: 250 A @ 440 V (Power Circuit); 140 A (AC Signalling Circuit); 250 A (DC Signalling Circuit)
  • - Rated Insulation Volts: 600/690 V
  • - IP Rating: IP20
  • - Frequency: 50/60 Hz
  • - Mechanical Durability: 15 Mcycles
  • - Electrical Durability (Operating): 300,000 cycles
  • - Embedded Surge Suppressor: No
  • - Holding VA: 7.5 VA (60 Hz, 20°C); 7 VA (50 Hz, 20°C)
  • - Inrush VA: 70 VA
  • - Standards: UL; EN 60947-4-1; EN 60947-5-1
  • - Standards (additional): UL 60335-2-40: Annex JJ
  • - Mounting Style: DIN Rail, Plate
  • - Mounts On: Plate, Rail
  • - Height: 85 mm
  • - Width: 45 mm
  • - Depth: 92 mm
  • - Net Weight: 0.365 kg
  • - Terminal Connection: Screw Clamp Terminals
  • - Tightening Torque: 1.7 Nm
  • - Non-Overlap Time: 1.5 ms
  • - Response Time: 12 to 22 ms (Closing), 4 to 19 ms (Opening)
  • - Impulse Withstand Voltage: Meets industry standards for impulse withstand voltage; does not guarantee performance under all conditions.
  • - Holding Current/Voltage: Designed to operate within specified current and voltage ratings; does not imply safety or suitability beyond rated parameters.
  • - Switching Current: 5 mA (Signalling Circuit) / 17 V (Signalling Circuit)
    • 🏢
