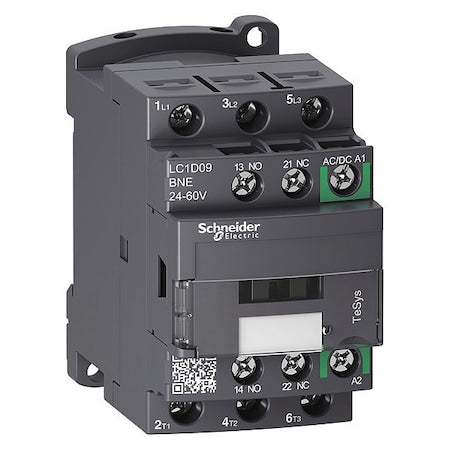

• Schneider Electric LC1D09BNE - IEC Magnetic Contactor, 1 NC/1 NO, 24 V-60 V AC/DC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D09BNE - IEC Magnetic Contactor, 1 NC/1 NO, 24 V-60 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D09BNE - IEC Magnetic Contactor, 1 NC/1 NO, 24 V-60 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D09BNE
$114.44 USD
$114.44 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a 3-pole, non-reversing switching device rated for use in motor control and resistive-load applications within specified parameters. It is rated for coil voltages of 24 to 60 V AC/DC within specified ranges and includes one normally open and one normally closed auxiliary contact (2 total). The unit uses screw clamp terminals, is part of the TeSys Deca series, and includes protective cover; compatible with enclosure options as per installation requirements; protective cover included but does not guarantee environmental protection in all conditions. It is rated for up to 690 V and rated for operation at frequencies of 50/60 Hz within specified limits.

Key features

  • - Poles/main contacts: 3 poles; 3 normally open main contacts
  • - Auxiliary contacts: 2 total (1NO/1NC)
  • - Coil voltage: 24–60 V AC/DC
  • - Electrical ratings: based on standardized testing; actual performance may vary depending on conditions
  • - Connection and enclosure: Screw Clamp terminals; compatible with enclosure options as per installation requirements; protective cover included but does not guarantee environmental protection in all conditions
  • - Mechanical/electrical durability: durability ratings based on testing standards; actual lifespan depends on operating environment and usage patterns
  • - Environmental/standards: IP20; impulse withstand: tested for impulse withstand up to specified voltage under controlled conditions; standards: conforms to applicable standards as listed; Reversing: Non-Reversing
  • - Series/size: TeSys Deca; Frame/Code: TeSys
  • - Mounting/installation: DIN Rail, Plate; Mounts On Plate, Rail
  • - Physical dimensions: Width 1.77 in; Depth 3.38 in; Height 3.03 in (Overall Depth 3.39 in)
  • - Operating parameters: Frequency 50/60 Hz; Max voltage rating 690 V; Signalling voltage 17 V (Signalling); Signalling current 5 mA
  • - Weight: 0.368 kg
  • - Other: Inrush VA 15 VA; Hold VA 0.9 VA; Impedance 2.5 mΩ; Impulse withstand: tested for impulse withstand up to specified voltage under controlled conditions; does not imply immunity from damage outside these parameters; Fire rating UL 94 V1; Reversing: No; Series: TeSys Deca
    • 🏢
