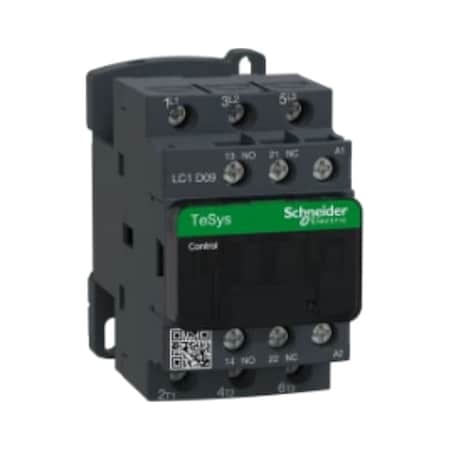

Schneider Electric LC1D09G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D09G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D09G7
$124.25 USD
$124.25 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing coil-operated switch rated for use in motor control and resistive load applications within specified parameters. It uses screw clamp terminals and features 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total). The unit is part of the TeSys Deca series, compatible with IEC-standard control panels, suitable for DIN rail or plate mounting as per specifications, and includes a protective cover; it does not include an enclosure or an embedded surge suppressor.

- Poles: 3

  • - Main contacts: 3 NO
  • - Auxiliary contacts: 2 (1 NO / 1 NC)
  • - Coil voltage: 120 V AC
  • - Reversing: Non-Reversing
  • - Series/Frame: TeSys Deca / TeSys
  • - Mounting: DIN Rail, Plate
  • - Electrical connection: Screw Clamp
  • - Max voltage: 690 V AC; 300 V DC within specified limits
  • - Frequency: 50/60 Hz
  • - IP rating: IP20
  • - Enclosure: No Enclosure
  • - Protective cover: Yes
  • - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
  • - Application: Intended for use in motor control and resistive load applications according to manufacturer specifications
  • - Weight: 0.32 kg
  • - Dimensions (approx.): Width 1.77 in, Height 3.03 in, Depth 3.38 in
  • - Fire rating: UL 94 V1
  • - Environmental traits: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
  • - Built-in suppressor: does not include a built-in surge suppression device; compatibility with external suppressors should be verified separately
  • - Impulse withstand: rated for impulse withstand voltage of 6 kV under test conditions specified by standards
  • - Hold/Inrush VA: Hold VA 7.5 VA; Inrush VA 70 VA
  • - Operating speed/time: 3600 cycles per hr; 12–22 ms (Closing), 4–19 ms (Opening)
  • - Mechanical durability: 15 Mcycles
  • - Electrical durability: 2,000,000 (and 600,000) cycles indicated
  • - Working temperature range: rated for operation within the specified temperature range of -40°F to 140°F (approx. -40°C to 60°C)
  • - Shock/Vibration: tested according to applicable standards for shock and vibration levels; actual performance may vary based on application conditions
  • - Auxiliary/Signalling: Includes Auxiliary Contacts; Signalling circuit frequency 25–400 Hz
  • - Impedance: 2.5 mΩ
  • - Rated making capacity: 250 A @ 440 V (Power Circuit), 140 A (AC Signalling), 250 A (DC Signalling)
  • - Rated short-time withstand current: multiple values listed (e.g., 105–140 A depending on circuit)
    • 🏢
