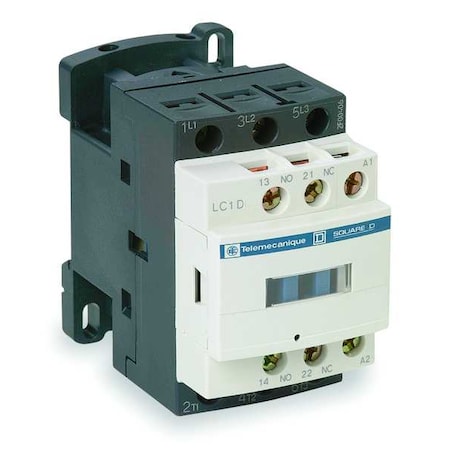

• Schneider Electric LC1D09LE7 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D09LE7 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D09LE7 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D09LE7
$124.25 USD
$124.25 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing, mains-operated switch rated for use in motor control and resistive-load applications within specified parameters. It uses a 208 V AC coil and includes auxiliary contacts (1NO/1NC) and screw clamp terminals as specified. The unit is part of the TeSys line (TeSys Deca) and conforms to IEC standards; enclosure options are available separately.

- Coil voltage: 208 V AC; Coil form: 208 V AC

  • - Action: Non-Reversing; Reversing: No
  • - Poles/Phase: 3 poles; Three-phase
  • - Auxiliary contacts: 2 total (1NO/1NC); Main contacts: 3 NO
  • - Auxiliary contact configuration: 1NO/1NC
  • - Electrical connection: Screw Clamp Terminals
  • - Enclosure: IP20; enclosure options are available separately
  • - Series: TeSys Deca; Frame/Code: TeSys
  • - Maximum voltage: rated for operation up to 690 V AC within specified conditions
  • - Rated currents: 9 A (Inductive), 20 A (Resistive) under specified conditions
  • - Rated making capacity: 250 A @ 440 V (Power Circuit); 140 A (Signalling Circuits) rated for making capacity up to these values within the defined testing standards
  • - Mechanical durability: tested for approximately 15 million cycles under standard test conditions; Electrical durability: 2,000,000 cycles (Power Circuit), 600,000 cycles (Signalling Circuit) under standard test conditions; actual lifespan may vary based on usage
  • - Inrush/Hold: specifications provided are typical operational parameters under standard test conditions
  • - Dimensions and weight: Width 1.77 in; Overall Depth 3.39 in; Overall Height 3.03 in; Net weight 0.32 kg
  • - Protection and mounting: IP20; enclosure options are available separately; includes protective cover; mounts on plate or DIN rail
  • - Additional specs: Series and standards references; Operating frequency 50/60 Hz
    • 🏢
