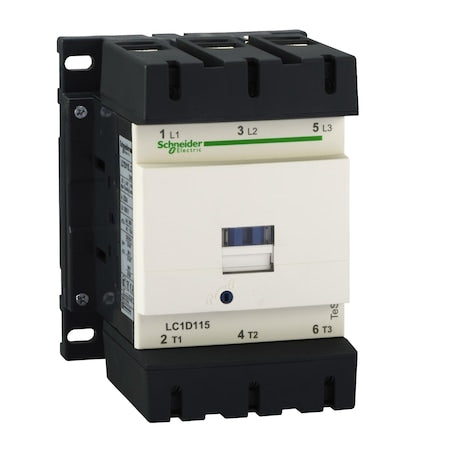

Schneider Electric LC1D1156B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 3 P, Non-Reversing, Screw

Schneider Electric LC1D1156B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 3 P, Non-Reversing, Screw

Brand: Schneider Electric SKU: LC1D1156B7
$699.77 USD
$699.77 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electrical switch rated for operation within IEC standards. With a 24 V AC coil and 1NC/1NO auxiliary contact, it is rated for switching specified load types within the specified parameters. The device uses screw terminals for control and power circuits and is equipped with a protective cover as per product specifications.

- Coil voltage: 24 V AC

  • - Poles and main contacts: 3P; 3 NO
  • - Auxiliary contacts: 1 NC/1 NO; mechanically linked 1 NO + 1 NC IEC 60947-5-1
  • - Reversing capability: non-reversing design (if applicable) or specify as non-reversing model
  • - Series/Range: LC1D; TeSys; TeSys Deca
  • - Terminals: Control circuit—Lugs-Ring; Power circuit—Bars, Lugs-Ring; Screw terminals
  • - IP rating: IP20
  • - Protective cover: With
  • - Fuse rating: fuse ratings are provided according to manufacturer specifications; ensure compatibility with application requirements
  • - Rated making capacity: rated making capacity based on standard testing conditions; actual performance may vary depending on installation and operating environment
  • - Full load current: full load current ratings are based on standard test conditions; actual operational currents should be verified during system design
  • - Rated insulation voltage: rated insulation voltages according to product specifications; proper application depends on adherence to these limits
  • - Rated impulse withstand voltage: impulse withstand voltage is based on standardized testing parameters; does not imply suitability beyond specified ratings
  • - Control circuit voltage: control circuit operates at nominal voltage within specified frequency range; verify compatibility with your system supply voltage and frequency
  • - Rated operational voltage: Power circuit up to 1000 V AC; up to 300 V DC
  • - Ambient temperature: -40 to 60°C; 60-70°C derating
  • - Operating time: 6-20 ms opening; 20-50 ms closing
  • - Non-overlap time: 1.5 ms
  • - Net weight: 2.5 kg
  • - Dimensions: Height 158 mm; Width 120 mm; Depth 136 mm
  • - Mechanical durability: 8 Mcycles
  • - Shock/vibration: 15 G (Closed); 6 G (Open); 4 G (Closed); 2 G (Open)
  • - Impedance: 0.6 mΩ
  • - Inrush/holding VA: 280-350 VA (inrush); 2-18 VA (hold)
  • - Fire/flammability: UL 94 V1; 850°C (IEC 60695-2-1)
  • - Pollution degree: 3
  • - Material/eco notes: PVC Free: Yes
    • 🏢
