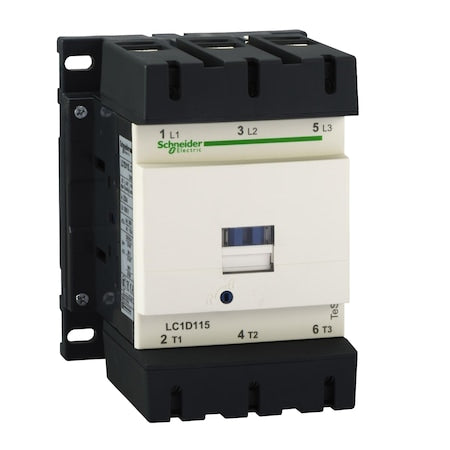

Schneider Electric LC1D115G6 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D115G6 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D115G6
$749.91 USD
$749.91 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 120 V AC coil and auxiliary contact form 1NC/1NO. It uses screw clamp terminals and is rated for operation with motor control and resistive loads within specified parameters. The unit can be mounted on plate or rail, and it includes a protective cover. The series designation is LC1D, with a net weight of 2.5 kg and dimensions of 136 mm depth, 158 mm height, and 120 mm width.

- Poles: 3

  • - Auxiliary Contacts: 1NC/1NO
  • - Coil Voltage: 120 V AC
  • - Electrical connection: Screw Clamp Terminals
  • - Mounting: Plate, Rail
  • - IP Rating: IP20
  • - Series: LC1D
  • - Protective Cover: Yes
  • - Dimensions (L×W×H): 136 mm × 120 mm × 158 mm
  • - Net Weight: 2.5 kg
  • - Reversing Capability: Non-Reversing
  • - Rated Voltage: rated voltage within specified ranges (see specifications)
  • - Rated Making Capacity: rated making capacity as specified under test conditions; actual performance may vary based on application
  • - Rated Breaking Capacity: rated breaking capacity as specified under test conditions; actual performance may vary based on application
  • - Full Load Currents: Designed to operate within the rated full load currents listed in specifications
  • - Fuses: Compatible with fuses of ratings specified; proper fuse selection recommended per application requirements
  • - Operating Time: Typical operating times based on testing conditions; actual times may vary depending on system configuration
  • - Shock Resistance: Tested to withstand shock levels up to specified values under controlled conditions
  • - Vibration Resistance: Designed to withstand vibration levels up to specified values under standard testing procedures
  • - Environmental Attributes: Mercury Free, PVC Free, Pollution Degree 3
  • - Fire Rating: UL 94 V1
  • - Impedance: 0.6 mΩ
  • - Inrush VA: 300 VA
  • - Hold VA: 22 VA
  • - Working Height: Up to 9842.52 ft
  • - Non-Overlap Time: 1.5 ms
    • 🏢
