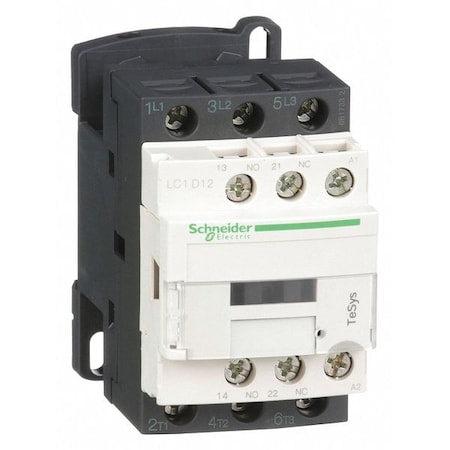

Schneider Electric LC1D12B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D12B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D12B7
$154.77 USD
$154.77 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, coil-energized switching device (TeSys Deca) rated for operation within specified motor control and resistive load applications. It features two auxiliary contacts (1NO/1NC) and includes screw clamp terminals as specified. The unit includes a protective cover and no enclosure, compatible with DIN rail or plate mounting according to installation guidelines.

Key features

  • - Coil Voltage: 24 V AC
  • - Poles/Phase: 3 poles, Three-phase
  • - Action: Non-Reversing (Reversing: No)
  • - Auxiliary Contacts: 2 total (1NO/1NC)
  • - Electrical Connection: Screw Clamp Terminals
  • - Frame/Series: TeSys Deca / TeSys
  • - Maximum Voltage: 690 V AC; 300 V DC
  • - Rated Making Capacity: rated for making capacity of up to 250 A at specified voltages under standard test conditions
  • - Full Load Amps: rated for full load currents of inductive and resistive loads within the specified parameters
  • - IP Rating / Enclosure: IP20; No Enclosure
  • - Mounting: DIN Rail, Plate
  • - Dimensions: Height 3.03 in; Width 1.77 in; Depth 3.38 in
  • - Net Weight: 0.325 kg
  • - Frequency: 50/60 Hz
  • - Other: Inrush VA 70 VA; Hold VA 7 to 7.5 VA; Impulse Withstand Voltage: tested for impulse withstand voltage up to applicable standards, but does not guarantee protection against all surge events; Includes Protective Cover as provided by manufacturer specifications
  • - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
  • - Operating Time: 12 to 22 ms (Closing); 4 to 19 ms (Opening)
  • - Temperature/Durability: Max. Temperature 850°C; Maximum Operating Temperature 140°F; Mechanical Durability 15 Mcycles; Electrical Durability 2,000,000 (AC-3) / 0.8 Mcycles (AC-1)
    • 🏢
