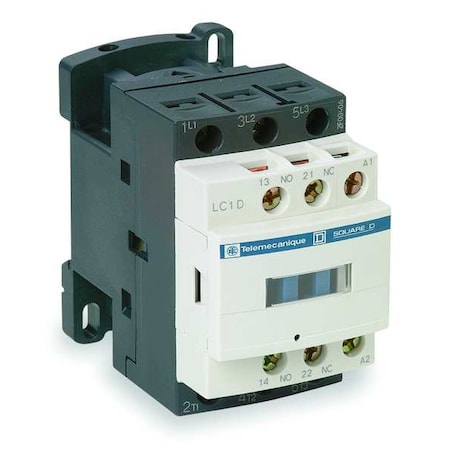

• Schneider Electric LC1D12LE7 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D12LE7 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D12LE7 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D12LE7
$161.31 USD
$161.31 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

- The item is an IEC Magnetic Contactor (3-pole, non-reversing) from the TeSys Deca series.

  • - It uses a 208 V AC coil to switch power circuits and includes auxiliary contacts as specified; actual performance may vary based on application.
  • - Rated for operation with motor control and resistive loads within specified parameters; uses screw clamp terminals; no built-in surge suppressor or enclosure.
  • - It is rated for operation within the specified voltage and frequency ranges and can be mounted on DIN rails or plates.
  • - Action: Non-Reversing
  • - Phase/Poles: Three-phase, 3 poles
  • - Coil Voltage: 208 V AC
  • - Auxiliary contacts: includes auxiliary contacts as specified; actual performance may vary based on application
  • - Electrical ratings: Maximum voltage 690 V AC; Rated making capacity 250 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
  • - Full Load Amps: 12 A inductive; 25 A resistive
  • - Durability: durability ratings are based on testing conditions; actual lifespan may vary depending on usage
  • - IP/Enclosure: IP20; No Enclosure
  • - Mounting/Terminals: DIN Rail, Plate mounting; Screw Clamp terminals
  • - Dimensions/Weight: Depth 3.38 in; Height 3.03 in; Width 1.77 in; Net Weight 0.325 kg
  • - Series: TeSys Deca
  • - Operating times: typical switching times under test conditions; actual response time may vary
  • - Impulse withstand: impulse withstand voltage as tested under specific standards; does not imply immunity from all transient events
  • - Includes: Auxiliary Contacts Yes; Protective Cover Yes
  • - Shock resistance: 15 G (Closed); 10 G (Open)
  • - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
  • - Frequency: 50/60 Hz
  • - Maximum Operating Temperature: 140 Degrees F
    • 🏢
