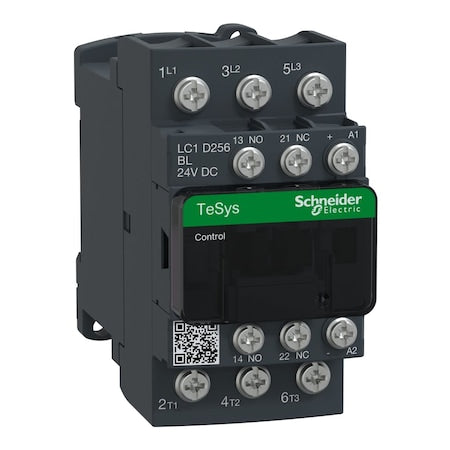

Schneider Electric LC1D256BL - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 3 P, Non-Reversing, Screw

Schneider Electric LC1D256BL - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 3 P, Non-Reversing, Screw

Brand: Schneider Electric SKU: LC1D256BL
$244.15 USD
$244.15 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a TeSys Deca 3-pole, non-reversing magnetic switch rated for operation within the specified electrical parameters. It operates from a 24V DC coil and includes auxiliary contacts configured as 1NC/1NO (2 total). The device uses screw-terminals and can be mounted on DIN Rail or Plate, with IEC-standard design and is rated for use up to 690V AC at 50 Hz in accordance with applicable standards.

Key features

  • - Coil voltage: 24V DC
  • - Poles: 3
  • - Auxiliary contacts: 2 total (1NC/1NO)
  • - Reversing capability: Non-Reversing
  • - Mounting style: DIN Rail, Plate
  • - Terminal connection type: Screw
  • - Maximum voltage rating: 690V AC
  • - Frequency: 50 Hz
  • - IP Rating: IP20
  • - Embedded surge suppressor: No
  • - Series: TeSys Deca
  • - Phase: Three
  • - Full Load Amps (Inductive/Resistive): 150 A / 200 A
  • - Full Load Current (Inductive/Resistive): 150 A / 200 A
  • - Horsepower (various voltages): 120V AC 2 hp; 240V AC 3 hp; 208V AC 7 1/2 hp; 240V AC 7 1/2 hp; 480V AC 15 hp; 600V AC 20 hp
  • - Mechanical operating durability: 30,000,000 cycles
  • - Electrical operating durability: 1,400,000 (AC-1), 1,650,000 (AC-3), 1,650,000 (AC-3e)
  • - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • - Auxiliary contacts included: Yes
  • - Resistance properties: Fire Resistant, Insulation Resistant
    • 🏢
