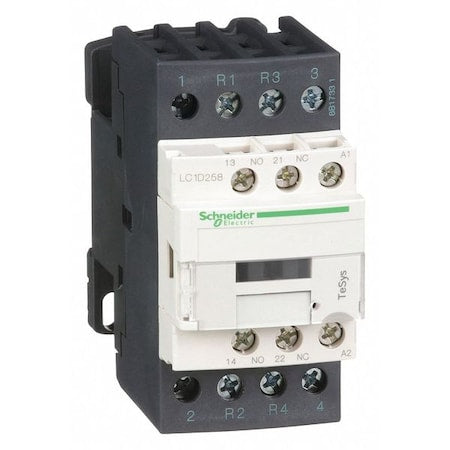

• Schneider Electric LC1D258G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 4 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D258G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 4 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D258G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 4 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D258G7
$259.41 USD
$259.41 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, non-reversing electrical switching device with a 120 V AC coil. It uses screw clamp terminals and includes a protective cover; the enclosure is not provided. Designed for resistive-load control in electrical control circuits, it is part of the TeSys Deca family and is rated for operation within the specified voltage and frequency ranges. It features 2 main contacts (2 NO + 2 NC) and 2 auxiliary contacts (1 NC + 1 NO), and is designed to provide IP20 front face protection when installed as specified.

Key features

  • - Coil voltage: 120 V AC
  • - Poles/Main contacts: 4P; 2 NO + 2 NC
  • - Auxiliary contacts: 2 total (1 NC + 1 NO), mechanically linked
  • - Reversing: Non-Reversing
  • - Terminals: Screw Clamp
  • - Mounting: DIN Rail and Plate
  • - Enclosure/Protection: No Enclosure; Protective Cover: With; IP rating: IP20 front face protection
  • - Series: TeSys Deca
  • - Maximum voltage: 690 V AC
  • - Frequency: 50/60 Hz
  • - Rated making capacity: 140 A AC signalling; 250 A DC signalling; 450 A @ 440 V (Power Circuit)
  • - Inrush/ Hold VA: Inrush 70 VA; Hold 7.5 VA (60 Hz) / 7 VA (50 Hz)
  • - Durability: Electrical 1.4 Mcycles; Mechanical 15 Mcycles
  • - Weight: 0.425 kg
  • - Dimensions: Height 4.13 in; Width 1.77 in; Depth 3.9 in
  • - Impedance: 2 mΩ
  • - Impulse withstand: 6 kV
    • 🏢
