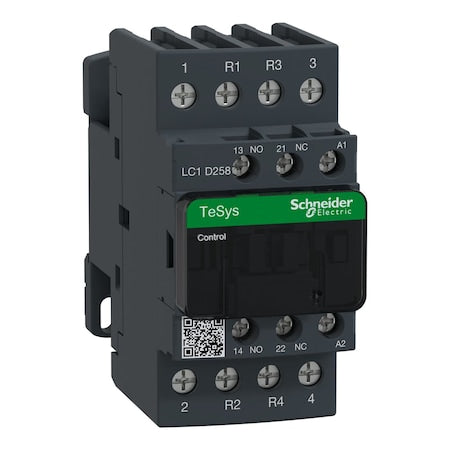

Schneider Electric LC1D258U7 - IEC Magnetic Contactor, 1 NC/1 NO, 240 V AC, 4 P, Non-Reversing, Screw Clamp

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, non-reversing IEC-style device rated for switching within specified voltage and current ranges. It is designed for operation with a 240V AC control voltage and includes auxiliary contacts configured as 1NC/1NO (two auxiliary contacts in total). This compact contactor is rated for use in three-phase power systems within specified parameters and is intended for installation in control panel environments according to applicable standards.

Key features:

• - Coil voltage: 240V AC
• - Poles: 4
• - Phase: Three
• - Reversing capability: Non-Reversing
• - Auxiliary contacts: 2 total (1NC/1NO)
• - Terminal connection type: Screw Clamp
• - Mounting style: DIN Rail, Plate
• - Maximum voltage rating: 690V AC
• - IP rating: IP20
• - Frequency: 50/60 Hz
• - Mechanical operating durability: 15,000,000 cycles
• - Electrical operating durability: 1,400,000 (AC-1)
• - Full load current: Inductive 150 A; Inductive (load) 40 A; Resistive 200 A
• - Item: IEC Magnetic Contactor
• - Series: TeSys Deca
• - Standards: CSA/CAN/UL and IEC/EN listed (see full standards listing)
• - Dimensions: Depth 3.9 in; Height 3.58 in; Width 1.77 in
• - Auxiliary contact form: 1NC/1NO
