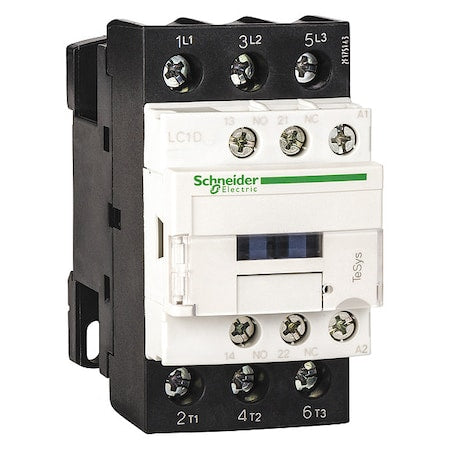

• Schneider Electric LC1D25P7 - IEC Magnetic Contactor, 1 NC/1 NO, 230 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D25P7 - IEC Magnetic Contactor, 1 NC/1 NO, 230 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D25P7 - IEC Magnetic Contactor, 1 NC/1 NO, 230 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D25P7
$203.82 USD
$203.82 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch rated for use in motor control and resistive load applications.

It uses a 230 V AC coil with screw clamp terminals; includes 1NO/1NC auxiliary contacts (2 total); features a protective cover; conforms to IEC standards under the TeSys Deca family.

The device can be mounted on DIN rails or plates; it is supplied without an enclosed housing (IP20 rating).

- Coil voltage: 230 V AC (50/60 Hz); Phase: Three

  • - Poles and main contacts: 3 poles; rated for specified switching capacity within operational parameters
  • - Auxiliary contacts: 2 contact points configured as normally open/normally closed as specified by manufacturer ratings
  • - Connection method: Screw clamp terminals rated for appropriate wire sizes within installation guidelines
  • - Mounting options: DIN rail or plate mounting according to standard practices
  • - Series/frame designation: Based on manufacturer specifications
  • - Enclosure/IP: Enclosure type varies depending on application requirements; IP20 rating indicates limited ingress protection when used with provided covers if applicable
  • - Rated voltages: Based on product specifications but do not imply suitability beyond those ratings or guarantee performance at all conditions
  • - Currents and making capacity: Current ratings specify maximum electrical loads per manufacturer data but do not guarantee operation under all circumstances or over time
  • - Short-time withstand and surge: Short-time withstand capabilities are based on testing standards but do not ensure failure-free operation during actual use conditions outside tested parameters
  • - Mechanical/electrical durability: Durability figures indicate typical cycle counts under test conditions but do not constitute guarantees of lifespan in specific environments or usage patterns
  • - Operating times: 12–22 ms (Closing); 4–19 ms (Opening)
  • - Hold/inrush power: Hold VA 7.5 VA (60 Hz, 20°C); 7 VA (50 Hz, 20°C); Inrush VA 70 VA
  • - Protection and safety features: Embedded surge suppressor: No
  • - Physical dimensions and weight: Width 1.77 in; Height 3.35 in; Depth 3.62 in; Net weight 0.37 kg
  • - Environmental and standards: Standards include EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, and others; Shock: 8 G (Open), 15 G (Closed)
  • - Reversing: Non-Reversing
  • - Operating environment: Max ambient temperature 60°C (140°F)
    • 🏢
