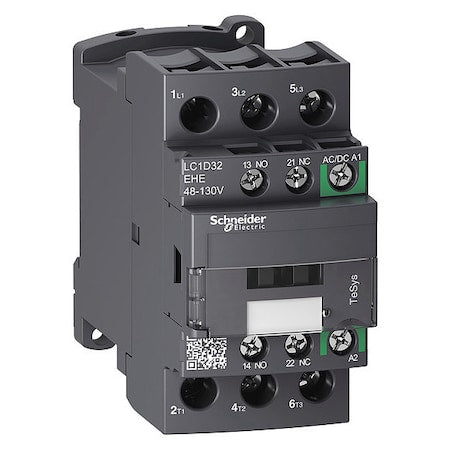

Schneider Electric LC1D32EHE - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D32EHE - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D32EHE
$128.61 USD
$128.61 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a three-pole, non-reversing switching device (TeSys) rated for use in motor control and resistive load applications within specified parameters. It is compatible with coil voltages of 48–130 V AC/DC within specified ranges and uses screw clamp terminals for wiring. The unit includes two auxiliary contacts (1NO/1NC) and does not include surge suppression features or an enclosure; refer to product specifications for details. It is rated for operation within 50/60 Hz electrical systems as per specifications and is rated for operation at voltages up to 690 V AC within specified conditions.

Key features

  • - Coil Voltage: 48–130 V AC/DC
  • - Poles and contacts: 3 poles; main contacts 3 normally open; auxiliary contacts 2 (1NO/1NC)
  • - Rated voltage/frequency: 690 V AC; 50/60 Hz; Phase: Three
  • - Electrical connections: Screw Clamp Terminals
  • - Mounting: DIN Rail or Plate; Mounts On: Plate, Rail
  • - Enclosure: No Enclosure; IP20; protective cover included
  • - Dimensions and weight: Depth 3.62 in; Height 3.35 in; Width 1.77 in; Net weight 0.438 kg
  • - Operating times: 45–55 ms (Closing), 20–90 ms (Opening); Non-Overlap 1.5 ms
  • - Mechanical/electrical durability: Mechanical Durability 15 Mcycles; Electrical/operating durability values provided in the specification
  • - Other ratings: UL 94 V1 fire rating; Shock resistance 8 G (Open) and 15 G (Closed)
    • 🏢
