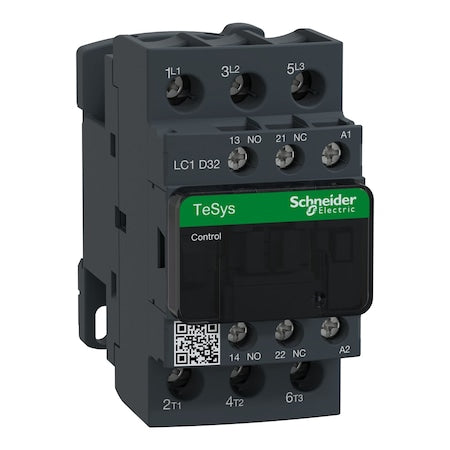

• Schneider Electric LC1D32G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D32G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D32G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D32G7
$223.44 USD
$223.44 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a 3-pole, rated for switching power circuits within specified load parameters in IEC-based control systems. It uses a 120 V AC coil and screw clamp terminals, with auxiliary contacts configured as 1NO/1NC (2 total). Suitable for DIN rail or plate mounting; shipped without an enclosure (IP20). It belongs to the TeSys Deca series and includes a protective cover (not intended as safety certification).

Key features

  • - Coil voltage: 120 V AC
  • - Poles/phase: 3 poles; Three-phase
  • - Auxiliary contacts: 2 total (1NO/1NC)
  • - Main contacts: 3 normally open
  • - Reversing: Rated for non-reversing operation within specified functions
  • - Electrical connection: Screw Clamp Terminals
  • - Mounting: DIN Rail, Plate
  • - Enclosure/IP: No Enclosure; IP20
  • - Frame/Series: TeSys Deca
  • - Rated voltage / insulation: 690 V AC; Insulation 600/690 V
  • - Full load currents: 32 A (Inductive); 50 A (Resistive) | rated for full load currents up to 32 A inductive / 50 A resistive under specified conditions
  • - Maximum making capacity: 550 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling) | rated maximum making capacity of up to 550 A at 440 V in power circuit applications; capacities may vary based on actual operating conditions
  • - Frequency: 50/60 Hz
  • - Dimensions: Depth 3.62 in; Height 3.35 in; Width 1.77 in
  • - Net weight: 0.375 kg
  • - Operating times: Closing 12–22 ms; Opening 4–19 ms | typical operating times observed under test conditions, not guaranteed during all use cases
  • - Coil hold VA: 7.5 VA @ 60 Hz; 7 VA @ 50 Hz | coil consumption ratings at specified frequencies, subject to actual application conditions
  • - Impulse withstand voltage: 6 kV | tested impulse withstand voltage of up to approximately 6 kV, but performance may vary with application specifics
  • - Shock resistance: 8 G (Open); 15 G (Closed) | shock resistance levels measured under specific test standards; actual resilience depends on installation and environment
  • - Operating temperature: Maximum operating temperature 140°F | rated for operation within the specified temperature range, actual performance may vary based on environmental factors
  • - Environmental attributes: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
  • - Includes protective cover: Yes -> Includes a protective cover (not intended as safety certification): Yes
  • - Embedded surge suppressor: No
    • 🏢
