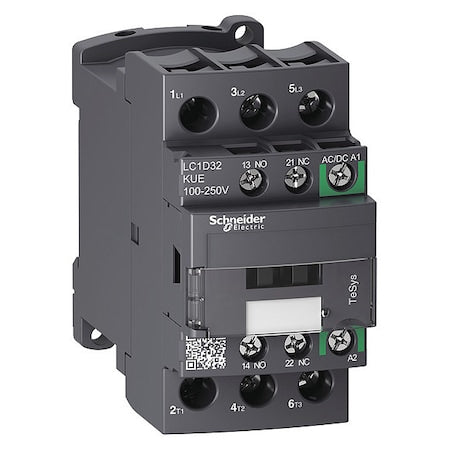

• Schneider Electric LC1D32KUE - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D32KUE - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D32KUE - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D32KUE
$240.18 USD
$240.18 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electrical switching device (TeSys Deca series) rated for controlling motor and resistive loads within specified parameters. It operates with a coil voltage of 100–250 V AC/DC as specified to energize or de-energize the main contacts and features two auxiliary contacts (1NO/1NC) for signaling or control circuits. The unit employs screw clamp terminals and is rated for operation at voltages up to 690 V within the specified ratings, with a 50/60 Hz operating capability. It does not include a surge suppressor or enclosure; compatibility should be verified for specific applications.

Key features

  • - Poles: 3; Reversing: Non-Reversing; Phase: Three
  • - Coil voltage: 100–250 V AC/DC
  • - Auxiliary contacts: 2 total (1NO/1NC)
  • - Electrical connections: Screw Clamp Terminals
  • - Enclosure: No Enclosure; IP20
  • - Series: TeSys Deca
  • - Max voltage: 690 V
  • - Power/current ratings: Resistive up to 50 A; Inductive up to 32 A under standard test conditions
  • - Standards: CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
  • - Fire rating: UL 94 V1
  • - Mechanical/Electrical durability: 15 Mcycles (mechanical); 2,100,000 cycles (electrical)
  • - Dimensions (approx.): Depth 3.62 in; Height 3.35 in; Width 1.77 in
  • - Weight: 0.438 kg
  • - Other: Impulse withstand voltage: Up to 6 kV according to testing standards; Embedded surge suppressor: No; Maximum operating temperature: 140 °F; Max. Temperature: 850 °C
    • 🏢
